Ubiquiti Standard 16 PoE | USW-16-POE (42W)

Name: Ubiquiti Standard 16 PoE | USW-16-POE (42W) - 4BROTHERS TECHNOLOGIES
Price: 136500 PKR
Availability: InStock

₨ 136,500 SHOP

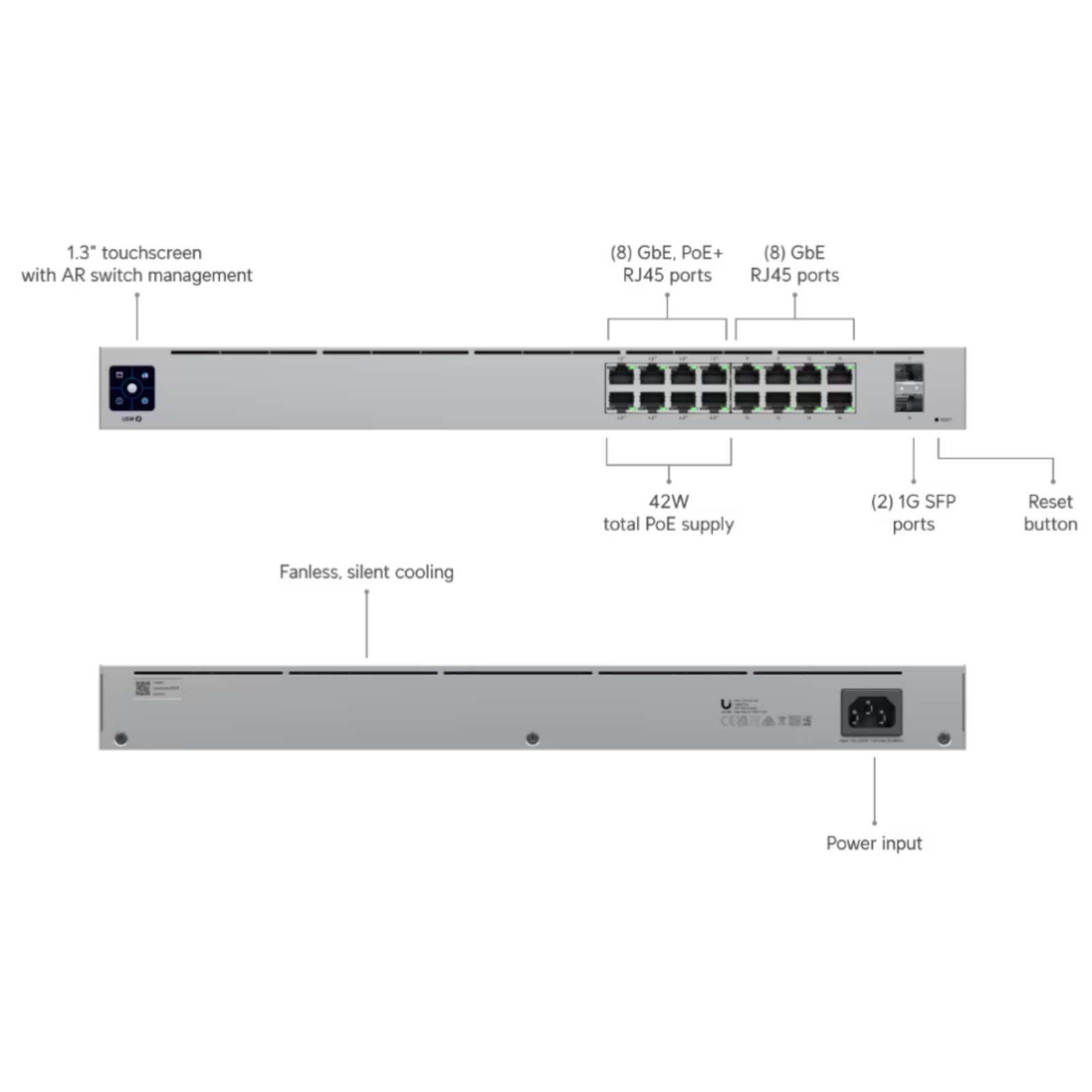

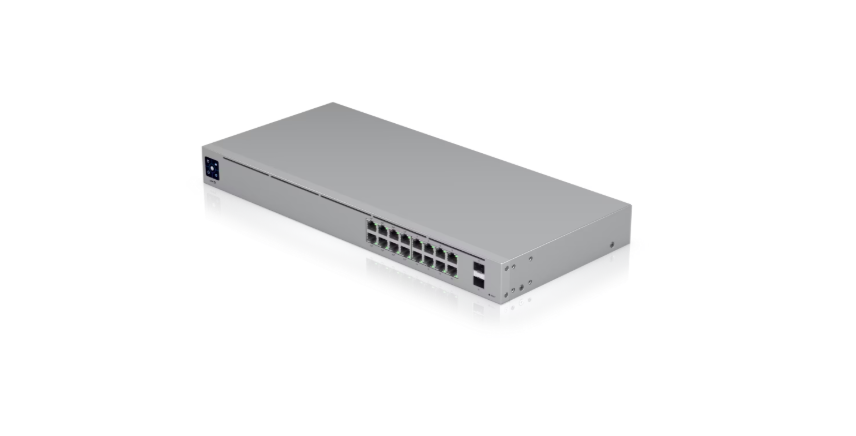

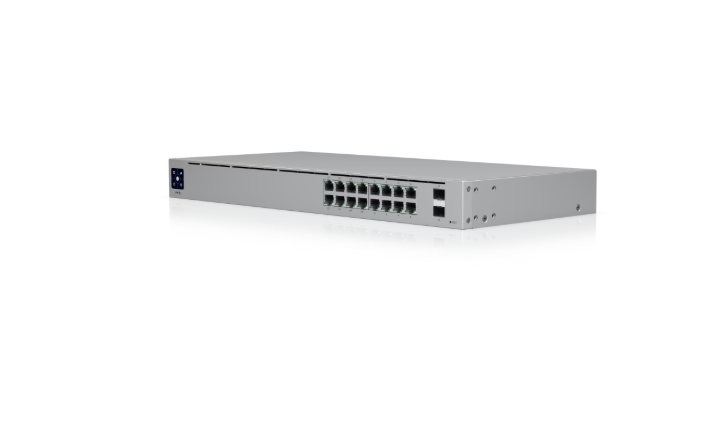

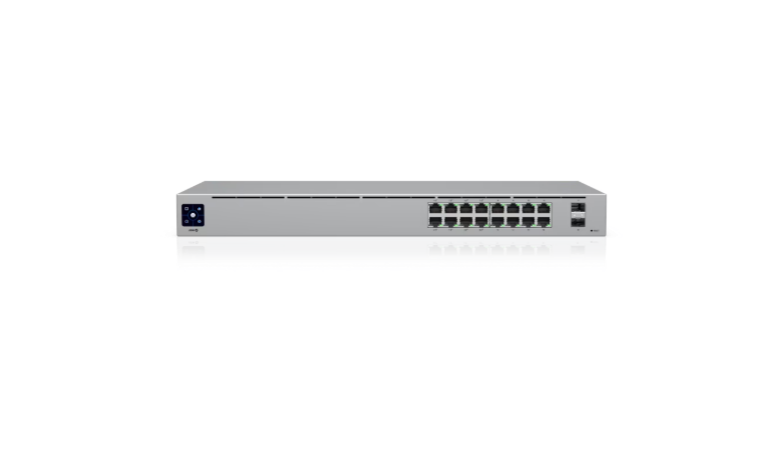

A 16-port, Layer 2 PoE switch with a silent, fanless cooling system.

Overview

Specification	Details
Switching Capacity	36 Gbps
Total Non-Blocking Throughput	18 Gbps
Forwarding Rate	27 Mpps
Supported VLANs	1,000
MAC Address Table Size	8,000
Packet Buffer Size	0.5 MB
Access Lists – IPv4	128
Access Lists – MAC	128

Feature	Support
LACP Port Aggregation	✓
STP & RSTP	✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)	✓
IGMP Snooping	✓
802.1X Control	✓
MAC-Based ACLs & Device Isolation	✓
DHCP Snooping & Guarding	✓
Egress Rate Limit	✓
Flow Control	✓
Storm Control	✓
Multicast & Broadcast Rate Limiting	✓
MAC Address Blocking	✓
IP-Based ACLs & Network Isolation	✓
MAC-Based Port Restriction	✓
Port Isolation	✓
Port Mirroring	✓
Jumbo Frames	✓
LLDP-MED	✓
Voice VLAN	✓
Loop Protection	✓
Virtual Network Override	✓

Specification	Details
PoE Ports	PoE+: 8
Max. PoE Wattage per Port by PSE	PoE: 15.4W; PoE+: 32W
Max. Power Consumption	18W (Excluding PoE Output); 60W (Including PoE Output)
Power Method	Universal Input, 100–240V AC, 50/60 Hz
Power Input Method	AC Input
Power Supply	AC/DC, Internal, 60W
Supported Voltage Range	100–240V AC
Management	Ethernet AR
Heat Dissipation	61.4 BTU/hr
Weight	Without Mounting Brackets: 2.8 kg (6.2 lb); With Mounting Brackets: 2.9 kg (6.4 lb)
Enclosure Material	SGCC Steel
Mount Material	SGCC Steel
Supported Rack Depth	400–1200 mm (15.7–47.2″)
LCM Display	1.3″ Touchscreen
ESD Protection	Air: ±16kV, Contact: ±12kV
Ambient Operating Temperature	-5 to 40°C (23 to 104°F)
Ambient Operating Humidity	10 to 90% noncondensing
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 00593-21-08356
