Ubiquiti airMAX NanoBeam 5AC | NBE-5AC-Gen2

₨ 37,950 SHOP

Compact, UISP-ready, 5 GHz WiFi bridge with enhanced surge protection and an optimized radio and antenna.

Specification	Details

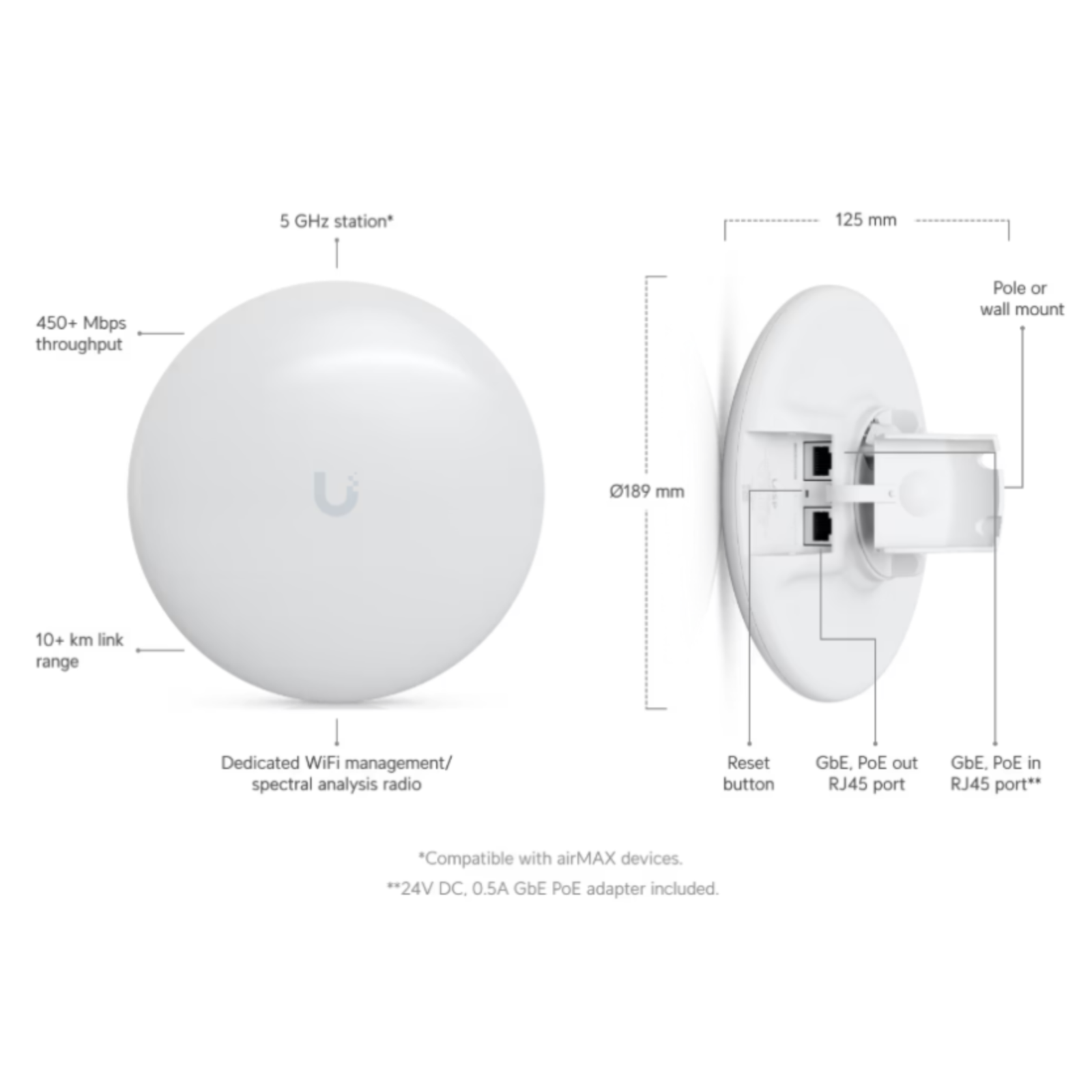

Dimensions	189 × 189 × 125 mm (7.44 × 7.44 × 4.92″)
Weight	530 g (1.17 lb)
Enclosure Materials	UV-stabilized polycarbonate
Mounting	Pole Mount (Included), Wall Mount (Optional)
Wind Loading	45.4 N at 200 km/h (10.2 lbf at 125 mph)
Wind Survivability	200 km/h (125 mph)

Specification	Details

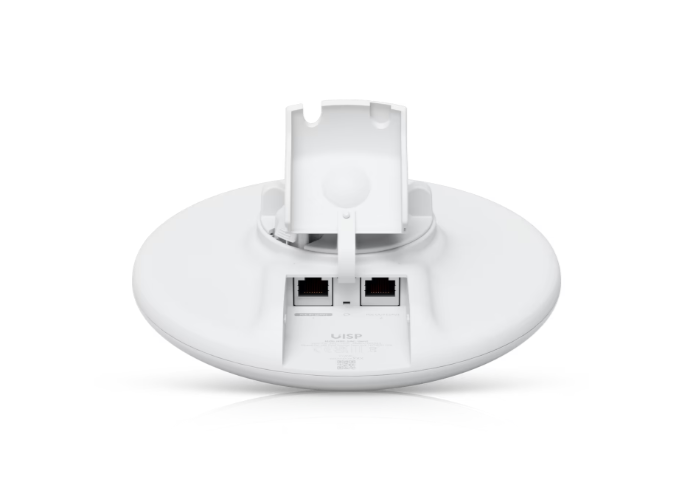

Networking Interface	(2) GbE RJ45 ports
Power Method	Passive PoE 2-pair (4, 5+; 7, 8 return)
Power Supply	24V, 0.5A Gigabit PoE Adapter (Included)
Supported Voltage Range	20–27V DC
Max. Power Consumption	8.5W
LEDs – Signal Strength	✓
LEDs – Power	✓
LEDs – Ethernet	✓
Ambient Operating Temperature	-40 to 80°C (-40 to 176°F)
Ambient Operating Humidity	5 to 95%, noncondensing
NDAA Compliant	✓
Certifications	CE, FCC, IC

Specification	Details
Salt Fog Test	IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G Method 509.5
Temperature Shock Test	IEC 68-2-14
UV Test	IEC 68-2-5 at 40°C (104°F) Equivalent: ETS 300 019-1-4
Vibration Test	IEC 68-2-6
Wind-Driven Rain Test	ETS 300 019-1-4 Equivalent: MIL-STD-810 G Method 506.5

Specification	Details
Operating Modes	Access Point, Station
airMAX AC Mode	✓
Discovery Protocol	✓
Frequency Band Offset	✓
Traffic Shaping with Burst Support	✓
30/50/60 MHz Channels	✓
Bridging	✓
DHCP	✓
Ping Watchdog	✓
Routing	✓
SNMP	✓
SSH	✓
Webserver	✓
Distance Adjustment	✓
Ackless Mode	✓
Dynamic Ack	✓
QoS	WMM packet classification with user-level priority: High, Medium, Low
