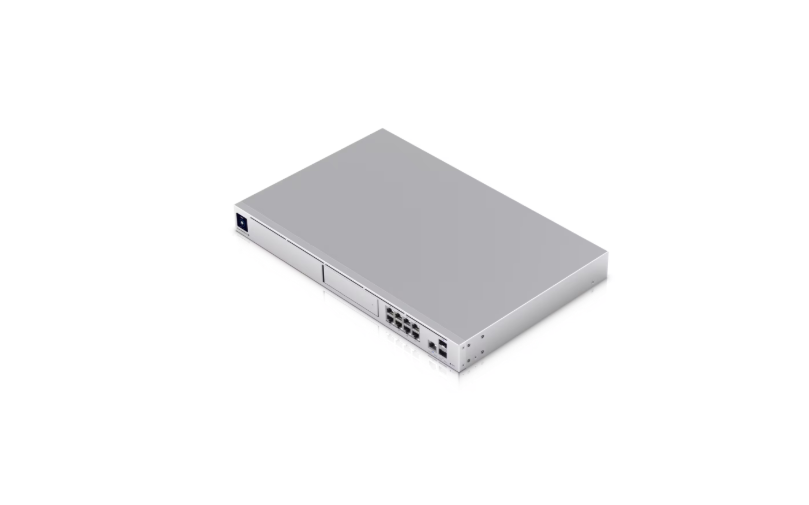

Ubiquiti Dream Machine Special Edition | UDM-SE (180W)

₨ 199,500 SHOP

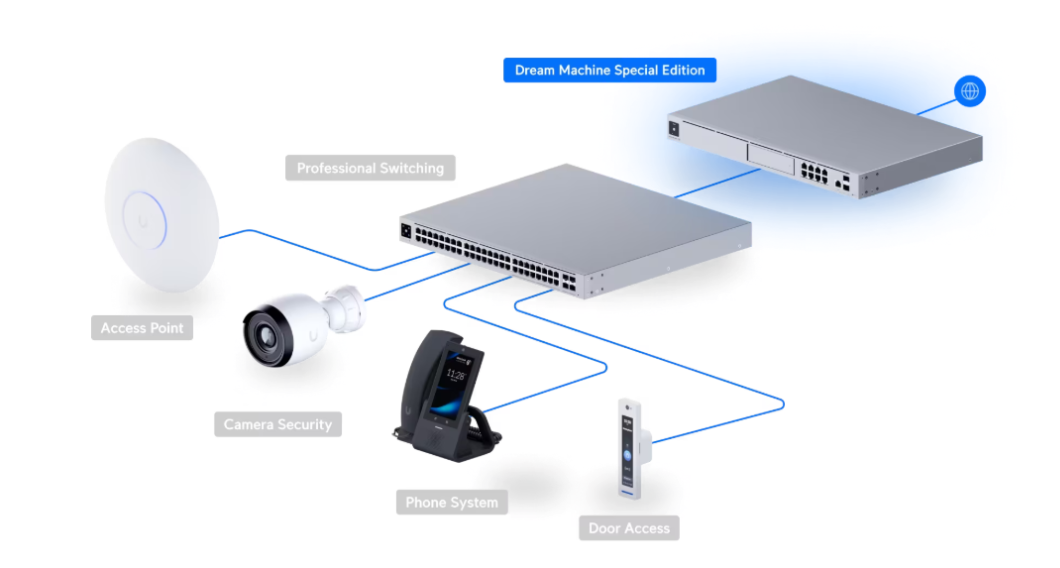

10G Cloud Gateway with 100+ UniFi device / 1,000+ client support, 3.5 Gbps IPS routing, and built-in PoE switching.

Specification	Details

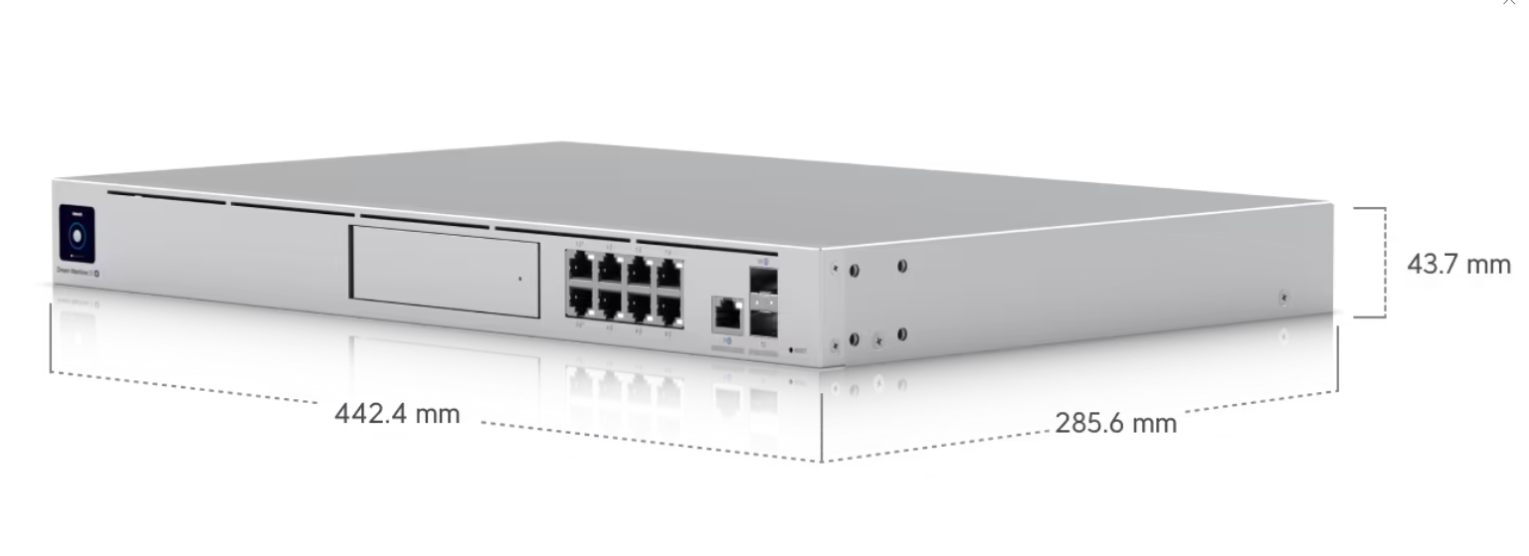

Dimensions	442.4 × 43.7 × 285.6 mm (17.4 × 1.7 × 11.2″)
UniFi Application Suite – Network	✓
UniFi Application Suite – Protect	✓
UniFi Application Suite – Access	✓
UniFi Application Suite – Talk	✓
UniFi Application Suite – Connect	✓
Managed UniFi Devices	100+
Managed Cameras	(24) HD, (14) 2K, (8) 4K
Managed Access Hubs	150
Simultaneous Users Connected	1,000+
Max. WAN Port Count	8

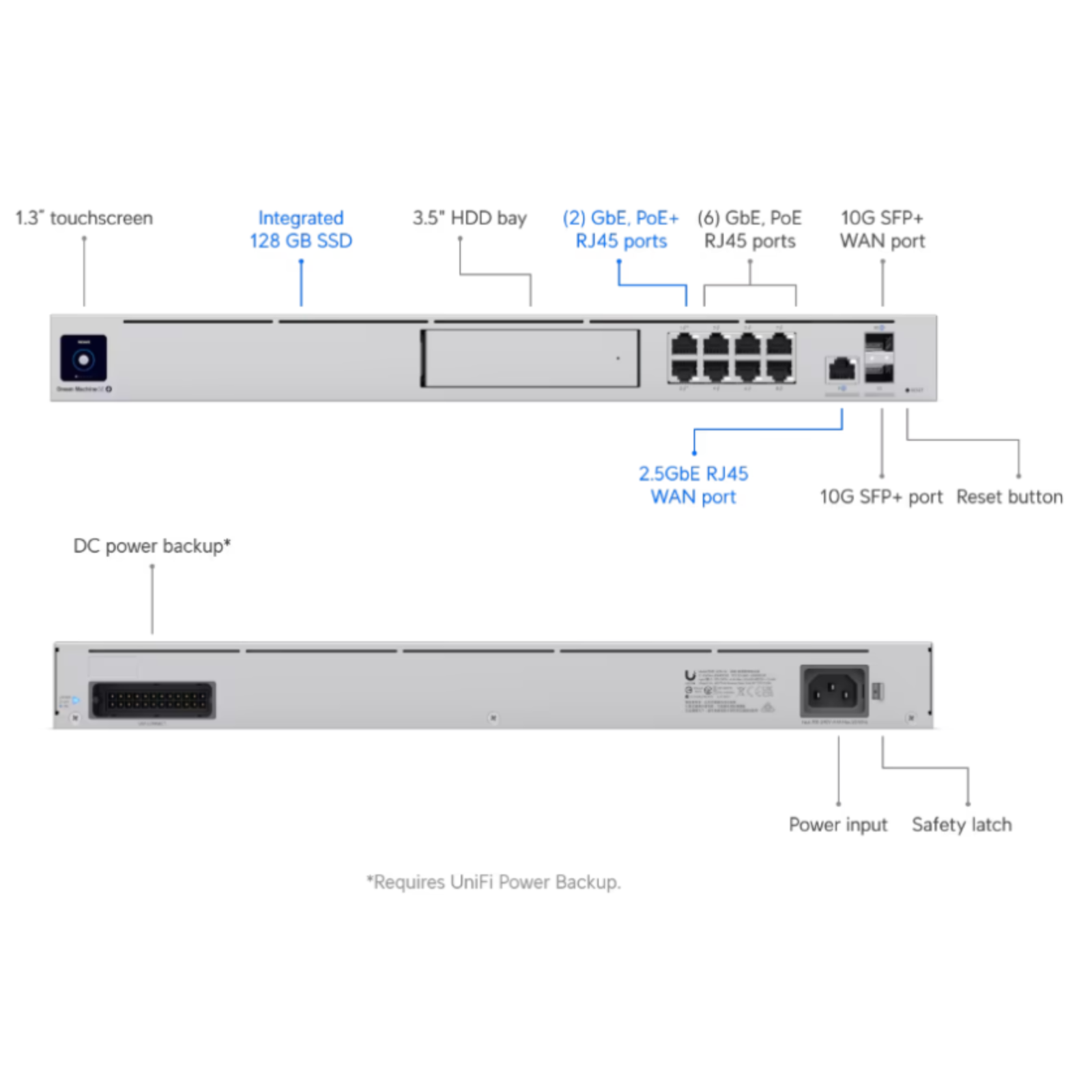

Default WAN Ports	(1) 10G SFP+, (1) 2.5 GbE RJ45
Port Layout – GbE RJ45	8 (1G/100M/10M)
Port Layout – 2.5 GbE RJ45	1 (2.5G/1G/100M/10M)
Port Layout – 10G SFP+	2 (10G/1G)
IDS/IPS Throughput	3.5 Gbps
Form Factor	Rack Mount (1U)
Redundancy	Shadow Mode (VRRP), Gateway Failover, DC Power Backup

Specification	Details
Stateful Firewall	✓
Application-Aware Layer 7 Firewall	✓
DPI & Traffic Identification	✓
Zone-Based Firewall	Advanced Filtering (Regions, Domains, Apps)
Content Filtering	✓
Intrusion Prevention (IPS/IDS)	✓
Ad Blocking	✓
IDS/IPS Signatures	55,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation	✓

Specification	Details
License-Free SD-WAN	✓
Site-to-Site VPN – Site Magic	✓
Site-to-Site VPN – IPsec	✓
Site-to-Site VPN – OpenVPN	✓
VPN Server – Identity Endpoint One-Click VPN	✓
VPN Server – Teleport Zero-Configuration VPN	✓
VPN Server – WireGuard	✓
VPN Server – OpenVPN	✓
VPN Server – L2TP	✓
VPN Client – OpenVPN	✓
VPN Client – WireGuard	✓

Specification	Details
Multi-WAN Load Balancing	✓
Shadow Mode (VRRP) High Availability	✓
LACP Port Aggregation	✓
Dynamic Routing – OSPF	✓
Dynamic Routing – BGP	✓
Advanced QoS	✓
Multicast DNS (mDNS)	✓
Advanced NAT	SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT
Integrated RADIUS Server	✓
RADIUS over TLS (RadSec)	✓
Additional Internet Failover with UniFi LTE Backup	✓
Internet Quality and Outage Reporting	✓
MAC Address Table Size	4,000
Policy-based WAN and VPN Routing	✓
Customizable DHCP Server	✓
IPv6 ISP Support	✓
IGMP Proxy	✓
Virtual Network Override	✓
All Traffic Flows	✓

Specification	Details
NVR Storage	(1) 3.5″ NVR HDD Bay; Built-in 128 GB SSD for Faster Experience
PoE Budget	180W
Max. PoE Wattage per Port – PoE	15.4W
Max. PoE Wattage per Port – PoE+	30W
Voltage Range – PoE Mode	PoE: 44–57V; PoE+: 50–57V
Max. Power Consumption	50W (Excluding PoE Output)
Power Method	(1) Universal AC Input, 100–240V AC, 4.4A Max., 50/60 Hz; (1) USP-RPS DC Input, 52V DC, 3.94A
Power Supply	AC/DC, Internal, 240W
Supported Voltage Range	100–240V AC
Heat Dissipation	170 BTU/hr (Excluding PoE Output)
Processor	Quad-core ARM® Cortex®-A57 at 1.7 GHz
System Memory	4 GB
On-board Storage	16 GB eMMC, 128 GB SSD (Integrated)
Weight	5 kg (10.9 lb)
Enclosure Material	Aluminium CNC, SGCC Steel
Mount Material	SGCC Steel
LCM Display	1.3″ Touchscreen
Management	Ethernet, Bluetooth
LEDs – Ethernet	✓
LEDs – SFP+	✓
LEDs – RPS	✓
LEDs – PSU	✓
LEDs – HDD	✓
Button	(1) Factory Reset
ESD/EMP Protection	Air: ±15kV, Contact: ±8kV
Ambient Operating Temperature	-10 to 40°C (14 to 104°F)
Ambient Operating Humidity	5 to 95%, noncondensing
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 07309-22-08356, SRRC
