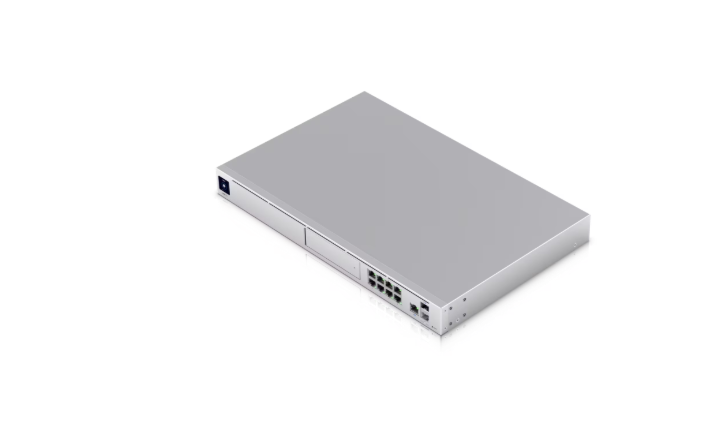

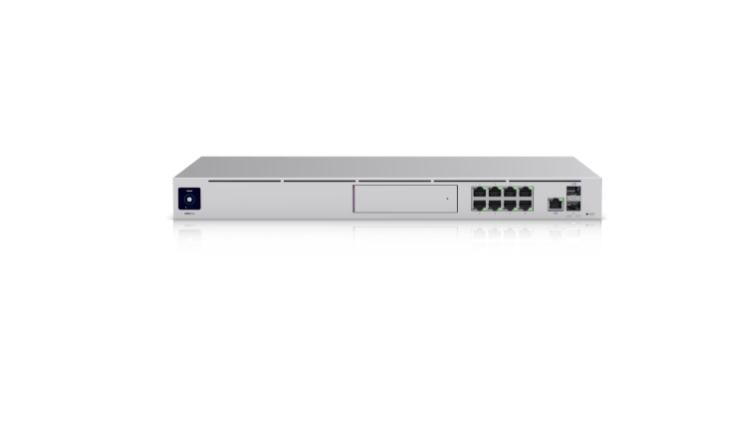

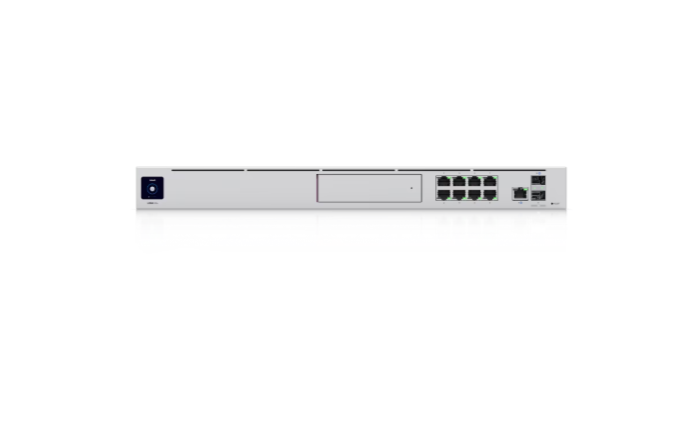

Ubiquiti Dream Machine Pro | UDM-Pro
Original price was: ₨ 175,000.₨ 168,000Current price is: ₨ 168,000.
10G Cloud Gateway with 100+ UniFi device / 1,000+ client support and 3.5 Gbps IPS routing.

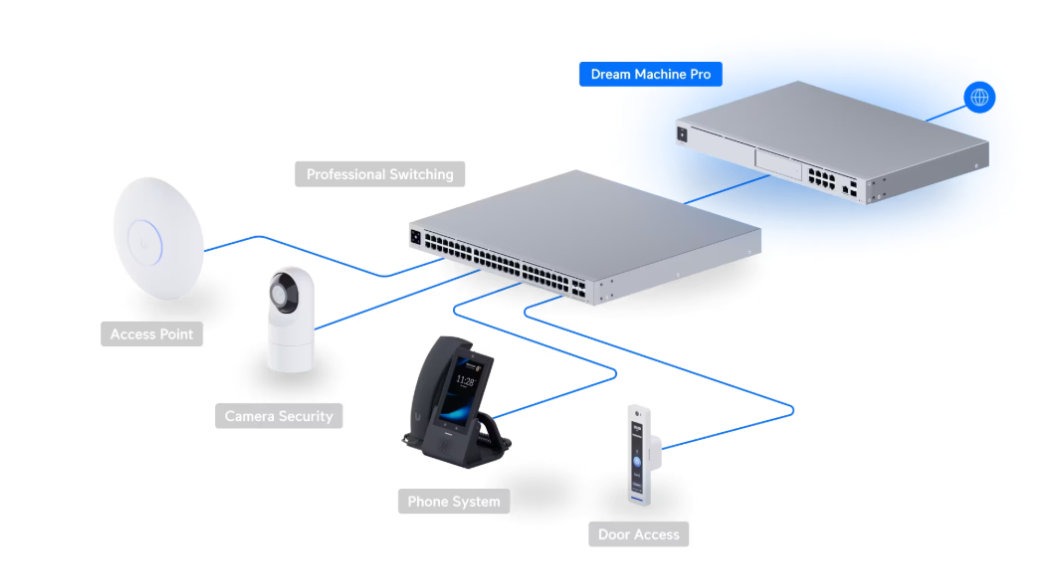

Ubiquiti Dream Machine Pro (UDM-Pro) is an advanced UniFi security gateway with powerful network management, firewall, VPN, and surveillance features for business networks.
Overview
| Specification | Details |
|---|---|

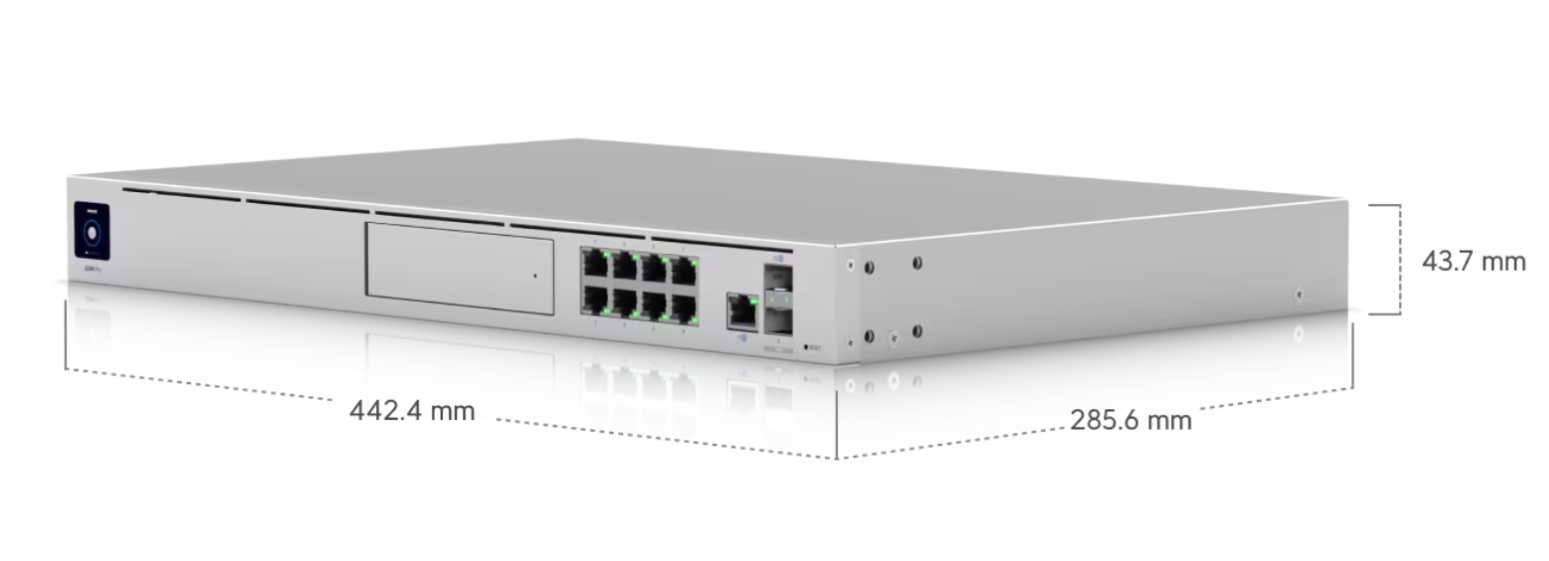

| Dimensions | 442.4 × 43.7 × 285.6 mm (17.4 × 1.7 × 11.2″) |
| UniFi Application Suite – Network | ✓ |
| UniFi Application Suite – Protect | ✓ |
| UniFi Application Suite – Access | ✓ |
| UniFi Application Suite – Talk | ✓ |
| UniFi Application Suite – Connect | ✓ |
| Managed UniFi Devices | 100+ |
| Managed Cameras | (24) HD, (14) 2K, (8) 4K |
| Managed Access Hubs | 150 |
| Simultaneous Users Connected | 1,000+ |
| Max. WAN Port Count | 8 |

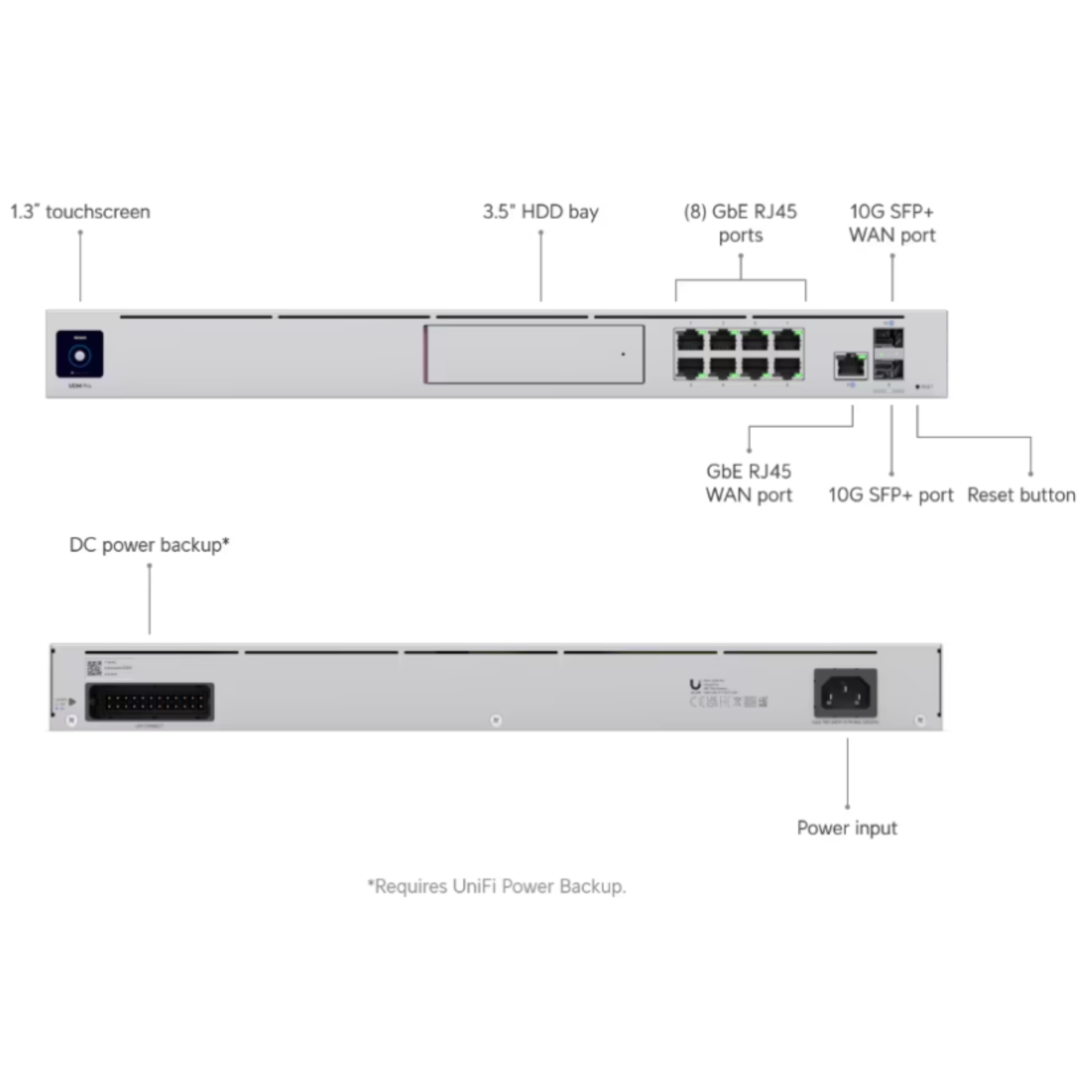

| Default WAN Ports | (1) 10G SFP+, (1) GbE RJ45 |
| Port Layout – GbE RJ45 | 1 |
| Port Layout – 1G/100M/10M | 9 |
| Port Layout – 10G SFP+ | 2 (10G/1G) |
| IDS/IPS Throughput | 3.5 Gbps |
| Form Factor | Rack Mount (1U) |
| Redundancy | Shadow Mode (VRRP), Gateway Failover, DC Power Backup |
Security
| Specification | Details |
|---|---|
| Stateful Firewall | ✓ |
| Application-Aware Layer 7 Firewall | ✓ |
| DPI & Traffic Identification | ✓ |
| Zone-Based Firewall | Advanced Filtering (Regions, Domains, Apps) |
| Content Filtering | ✓ |
| Intrusion Prevention (IPS/IDS) | ✓ |
| Ad Blocking | ✓ |
| IDS/IPS Signatures | 55,000+ with CyberSecure |
| VLAN/Subnet-based Traffic Segmentation | ✓ |
VPN & SD-WAN
| Specification | Details |
|---|---|
| License-Free SD-WAN | ✓ |
| Site-to-Site VPN – Site Magic | ✓ |
| Site-to-Site VPN – IPsec | ✓ |
| Site-to-Site VPN – OpenVPN | ✓ |
| VPN Server – Identity Endpoint One-Click VPN | ✓ |
| VPN Server – Teleport Zero-Configuration VPN | ✓ |
| VPN Server – WireGuard | ✓ |
| VPN Server – OpenVPN | ✓ |
| VPN Server – L2TP | ✓ |
| VPN Client – OpenVPN | ✓ |
| VPN Client – WireGuard | ✓ |
Networking
| Specification | Details |
|---|---|
| Multi-WAN Load Balancing | ✓ |
| Shadow Mode (VRRP) High Availability | ✓ |
| LACP Port Aggregation | ✓ |
| Dynamic Routing – OSPF | ✓ |
| Dynamic Routing – BGP | ✓ |
| Advanced QoS | ✓ |
| Multicast DNS (mDNS) | ✓ |
| Advanced NAT | SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT |
| Integrated RADIUS Server | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Additional Internet Failover with UniFi LTE Backup | ✓ |
| Internet Quality and Outage Reporting | ✓ |
| MAC Address Table Size | 4,000 |
| Policy-based WAN and VPN Routing | ✓ |
| Customizable DHCP Server | ✓ |
| IPv6 ISP Support | ✓ |
| IGMP Proxy | ✓ |
| Virtual Network Override | ✓ |
| All Traffic Flows | ✓ |
Hardware
| Specification | Details |
|---|---|
| NVR Storage | (1) 3.5″ NVR HDD Bay |
| Max. Power Consumption | 33W |
| Power Method | (1) Universal AC Input, 100–240V AC, 50/60 Hz; (1) USP-RPS DC Input |
| Power Supply | AC/DC, Internal, 50W |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 112 BTU/hr |
| Processor | Quad-core ARM® Cortex®-A57 at 1.7 GHz |
| System Memory | 4 GB |
| On-board Storage | 16 GB |
| Weight | 3.9 kg (8.6 lb) |
| Enclosure Material | Aluminium CNC, SGCC Steel |
| Mount Material | SGCC Steel |
| LCM Display | 1.3″ Touchscreen |
| Management | Ethernet, Bluetooth |
| LEDs – Ethernet | ✓ |
| LEDs – SFP+ | ✓ |
| LEDs – RPS | ✓ |
| LEDs – PSU | ✓ |
| LEDs – HDD | ✓ |
| Button | (1) Factory Reset |
| ESD/EMP Protection | Air: ±15kV, Contact: ±8kV |
| Ambient Operating Temperature | -10 to 40°C (14 to 104°F) |
| Ambient Operating Humidity | 5 to 95%, noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel: 01136-20-08356, SRRC |
