Mechanical
| Specification | Details |
|---|---|

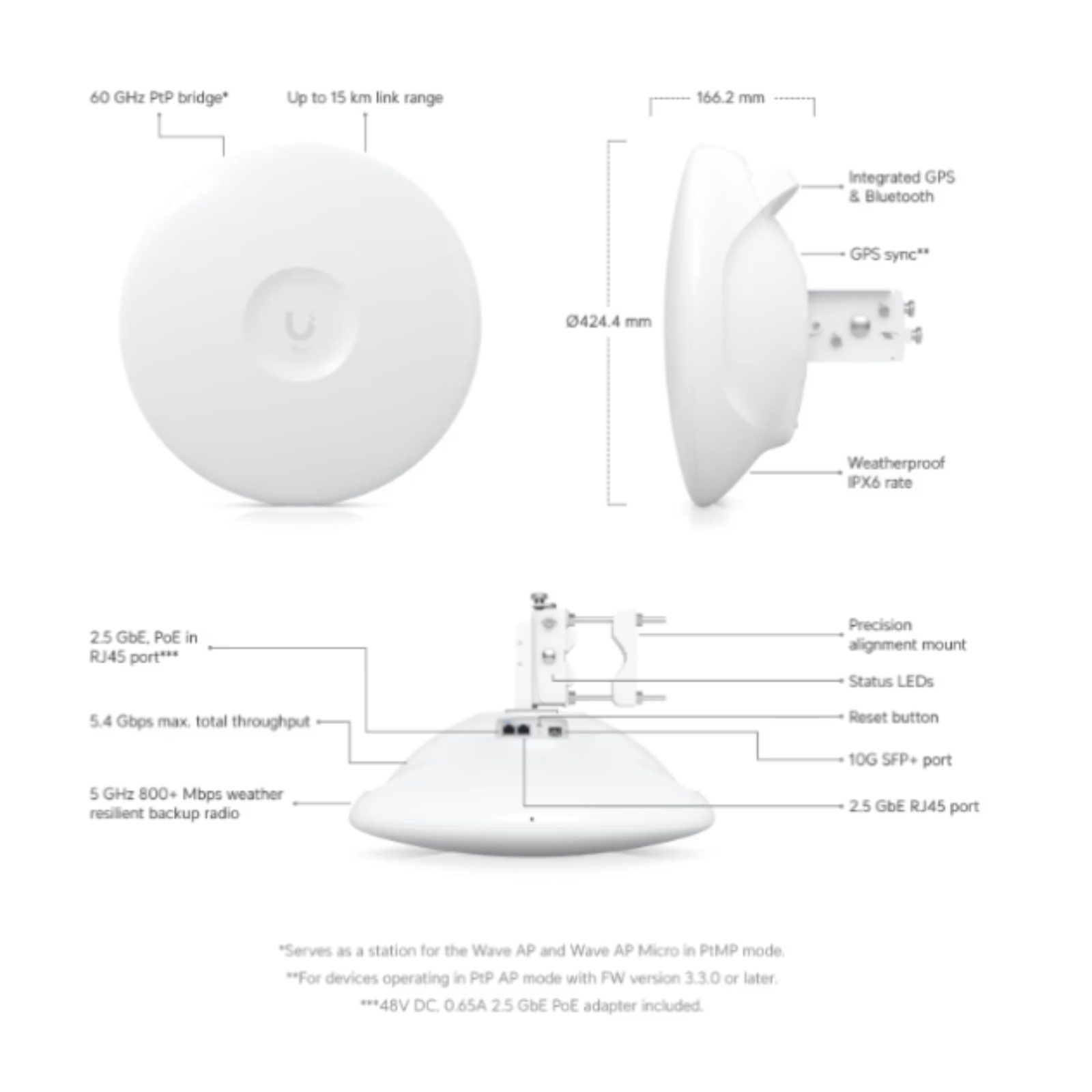

| Dimensions | ⌀424.4 × 166.2 mm (⌀16.7 × 6.5″) |
| Weight | Without Mount: 2.8 kg (6.2 lb); With Mount: 4 kg (8.8 lb) |
| Enclosure Material | Aluminum Alloy, UV-Stabilized Polycarbonate |
| Mount Material | Stainless Steel |
| Pole Mount Diameter | 25 to 76.2 mm (1 to 3″) |
| Wind Loading | 369 N at 200 km/h (83 lbf at 125 mph) |
| Weatherproofing | IPX6 |
Hardware
| Specification | Details |
|---|---|
| Processor | Quad-core ARM® Cortex®-A53 at 1.4 GHz |
| Memory | 512 MB |
| Networking Interface | (2) 2.5 GbE RJ45 ports; (1) 10G SFP+ port |
| Max. Power Consumption | 26W |
| Power Method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-); Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Supported Voltage Range | 44–54V DC; 22–27V DC |
| Power Supply | 48V DC, 0.65A, 2.5 GbE PoE Adapter (Included) |
| GPS | ✓ |
| Buttons | (1) Factory Reset |
| LEDs – Power | Flashing White: Bootup in Progress; White: Not Connected to UISP Application; Blue: Connected to UISP Application; Flashing Blue: Locate in Progress; Blue/White: Firmware Upgrade in Progress |
| LEDs – Ethernet | (2) Flashing Blue: Ethernet Traffic Detected |
| LEDs – GPS | Blue: Receiving at Least (4) GPS Satellite Signal |
| LEDs – Link | White: 5 GHz Link; Blue: 60 GHz Link |
| LEDs – SFP+ | (1) Flashing Blue: SFP+ Traffic Detected |
| Ambient Operating Temperature | -40 to 60°C (-40 to 140°F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | FCC, IC, CE |
Software
| Specification | Details / Support |
|---|---|
| Operating Modes | PtP; PtMP; Station |
| Discovery Protocol | ✓ |
| Traffic Shaping with Burst Support | ✓ |
| Services – UISP | ✓ |
| Services – Ping Watchdog | ✓ |
| Services – NTP Client | ✓ |
| Services – SNMP | ✓ |
| Tools – Cable Test | ✓ |
| Tools – Wave AI | ✓ |
| Tools – Wave Technology | ✓ |
| Utilities – Antenna Alignment | ✓ |
| Utilities – Ping | ✓ |
| Utilities – Site Survey | ✓ |
| Utilities – Speed Test | ✓ |
| Utilities – Traceroute | ✓ |
| Utilities – Discovery Utility | ✓ |
| Network | Bridge/Router Mode |
| Application Requirements | UISP |
| Version | 2.3.0 and later |
System
| Specification | Details |
|---|---|
| Total Throughput | 5.4 Gbps |
| Max. Range – PtP | Up to 15 km (9.3 miles) |
| Max. Range – PtMP | Up to 8 km (5 miles) (Wave AP); up to 6 km (3.7 miles) (Wave AP Micro, Wave AP Gen2) |
| Encryption | WPA2-PSK (AES) |
Radio Frequency
| Specification | Details |
|---|---|
| Operating Frequency – Worldwide | 57–71 GHz |
| Channel Bandwidth | 2160, 1080, 540 MHz |
| Operating Channels | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHz |
| Modulation | 16QAM, QPSK |
| Antenna Gain | 46 dBi |
| Polarization | Vertically-Linear |
| Beamwidth – Azimuth | 3 dB: 1.3° |
| Beamwidth – Elevation | 3 dB: 1.3° |
Radio Frequency (Back-Up)
| Specification | Details |
|---|---|
| WiFi Standard | 802.11ax (WiFi 6) |
| Operating Frequency – US/CA | U-NII-1: 5150–5250 MHz; U-NII-2A: 5250–5350 MHz; U-NII-2C: 5470–5725 MHz; U-NII-3: 5725–5850 MHz |
| Operating Frequency – Worldwide | 5150–5875 MHz |
| Channel Bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) |
| Antenna Gain | 22 dBi |
| Polarization | Dual-Linear |
| Beamwidth – Azimuth | 3 dB: 8° |
| Beamwidth – Elevation | 3 dB: 8° |
| Cross-Pol Isolation | 20 dB |
| Electrical Downtilt | 0° |
