Ubiquiti U7 Lite | U7-Lite

Name: Ubiquiti U7 Lite | U7-Lite - 4BROTHERS TECHNOLOGIES
Price: 41000 PKR
Availability: InStock

₨ 41,000 SHOP

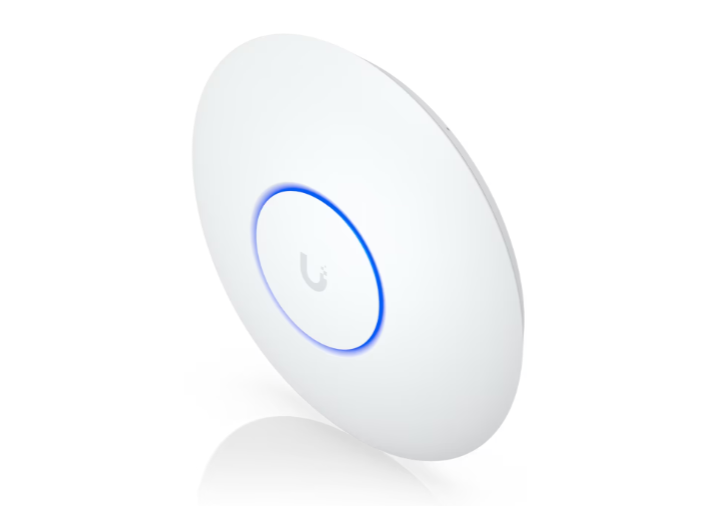

Compact, ceiling-mounted WiFi 7 AP with 4 spatial streams and 2.5 GbE uplink.

Overview

Specification	Details

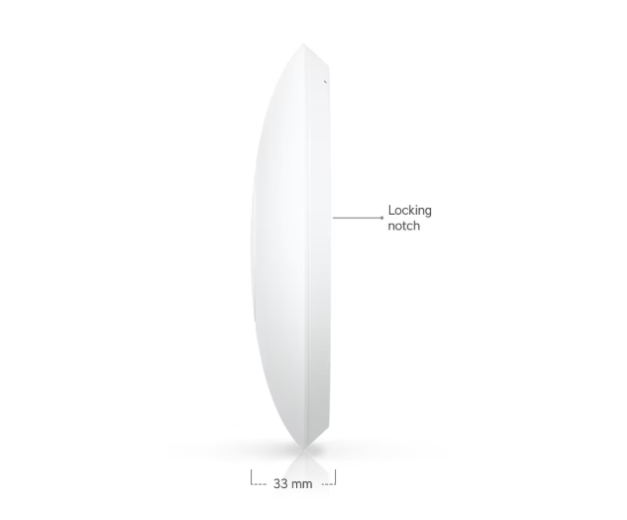

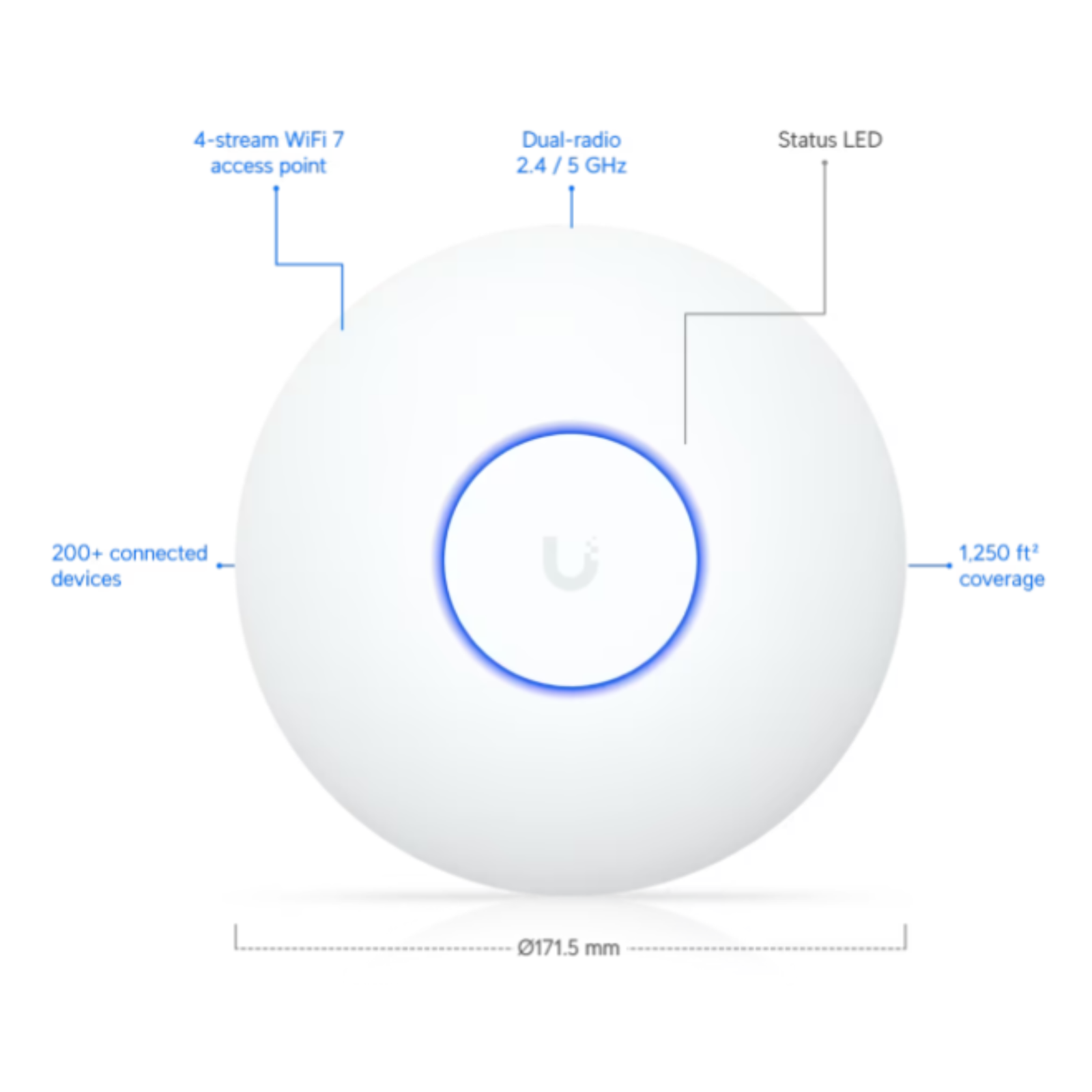

Dimensions	⌀171.5 × 33 mm (⌀6.8 × 1.3″)
WiFi Standard	WiFi 7
Spatial Streams	4
Coverage Area	115 m² (1,250 ft²)
Max. Client Count	200+
Uplink	2.5 GbE

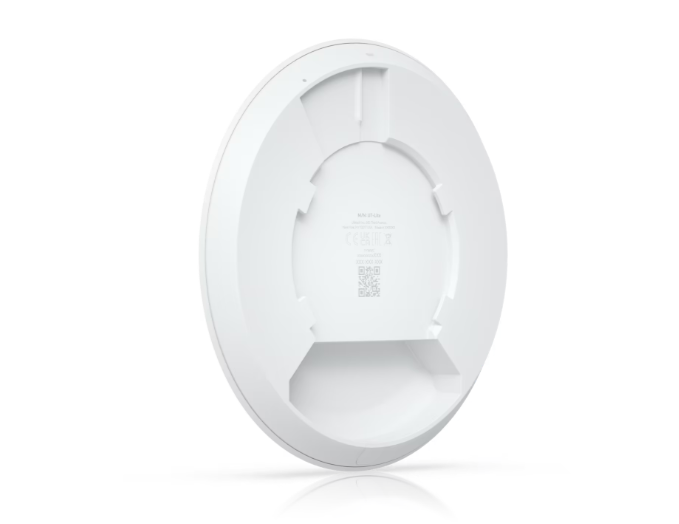

Mounting	Ceiling, Wall (Lite Mount Included)
Power Method	PoE

Performance

Feature	Support
Wireless Meshing	✓
Band Steering	✓
802.11v BSS Transition Management	✓
802.11r Fast Roaming	✓
802.11k Radio Resource Management (RRM)	✓
Advanced Radio Management	✓
Passpoint (Hotspot 2.0)	✓
Captive Hotspot Portal	Custom Branding Landing Page ✓
Voucher Authentication	✓
Payment-Based Authentication	✓
External Portal Server Support	✓
Password Authentication	✓
Guest Network Isolation	✓
Private Pre-Shared Key (PPSK)	✓
WiFi Speed Limiting	✓
Client Device Isolation	✓
WiFi Schedules	✓
RADIUS over TLS (RadSec)	✓
Dynamic RADIUS-assigned VLAN	✓

Specification	Details
Max. Power Consumption	13W
Supported Voltage Range	42.5–57V DC

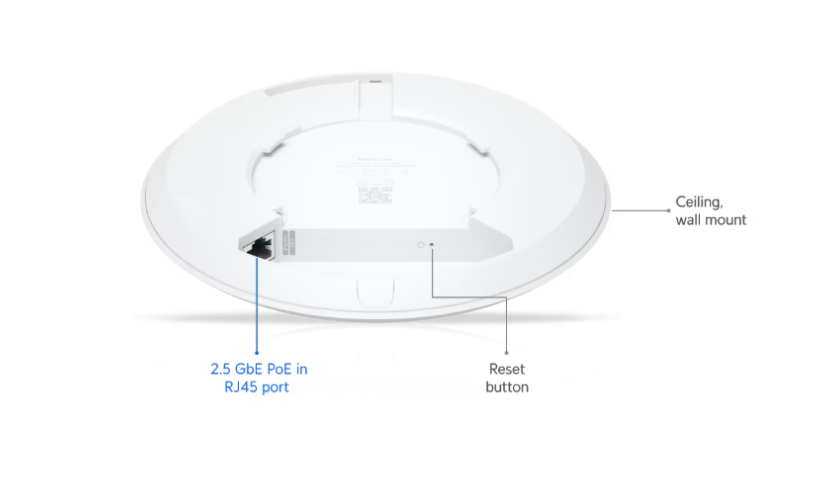

Networking Interface	(1) 2.5 GbE RJ45 port
Weight	313 g (11 oz)
Management	Ethernet
Enclosure Material	UV-stabilized Polycarbonate
Mount Material	UV-stabilized Polycarbonate, Galvanized Steel (SGCC)
LEDs – System	White/Blue
Channel Bandwidth	HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
Ambient Operating Temperature	-30 to 40°C (-22 to 104°F)
Ambient Operating Humidity	5 to 95% noncondensing
NDAA Compliant	✓
Certifications	CE, FCC, IC, SRRC, Anatel: 02143-25-08356
