General
| Specification | Details |
|---|---|

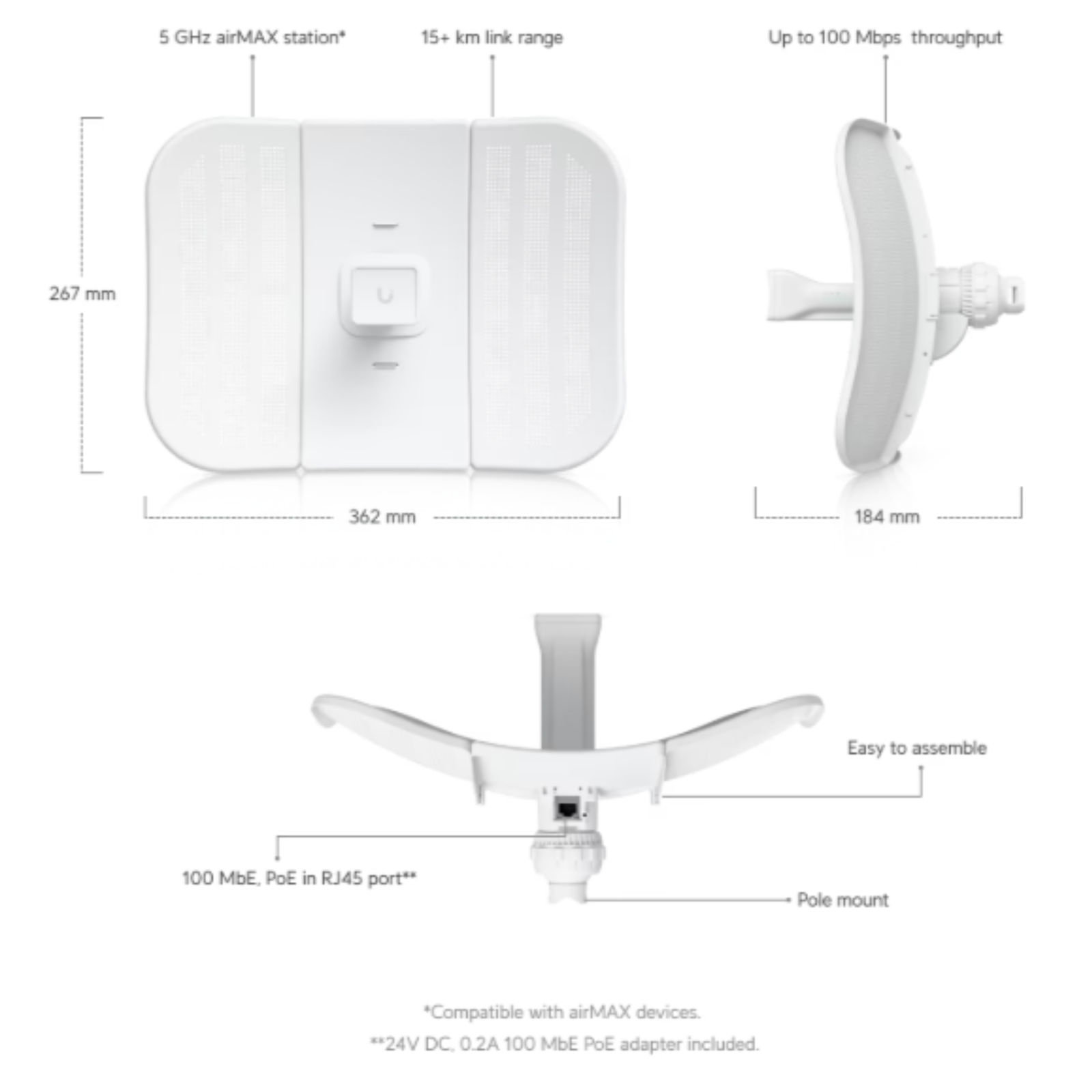

| Dimensions | 362 × 267 × 184 mm (14.25 × 10.5 × 7.2″) |
| Weight | 750 g (1.7 lb) |
| Mounting | Pole Mount (Included) |
Hardware
| Specification | Details |
|---|---|
| Networking Interface | (1) 10/100 MbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.2A PoE Adapter (Included) |
| Supported Voltage Range | 22–27V DC |
| Max. Power Consumption | 7W |
| Ambient Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Ambient Operating Humidity | 5 to 95%, noncondensing |
| NDAA Compliant | ✓ |
| ETSI Specification | EN 302 326 DN2 |
| Shock and Vibration Certification | ETSI300-019-1.4 |
| Certifications | FCC, IC, CE, RoHS, Anatel: 00723-16-08356 |
| RoHS Compliance | ✓ |
System
| Specification | Details |
|---|---|
| Antenna Gain | 23 dBi |
| Max. VSWR | 1.5:1 |
| Total Output Power | 25 dBm |
