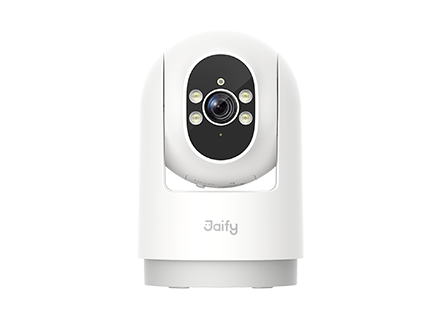

M2-5W 3K Indoor Wi-Fi PT Camera
M2-5W is an indoor dual-light Pan&Tilt camera developed
by Jaify, with 3K(5MP) resolution, supporting BT 5.0, Wi-Fi
network connection, 360° panoramic monitoring, supporting
human detection, human tracking, area vigilance, dual-light
vigilance, and full-color night vision. It can be applied to
indoor monitoring places such as homes, living rooms,
shops.
| Category | Specification |
|---|---|
| Model | M2-5W |
| Resolution | 3K (5MP) |
| Image Sensor | 1/3″ High-Performance Sensor |
| Minimum Illumination – Color | 0.1 Lux @ (F2.0, AGC ON); 0 Lux with Light |
| Minimum Illumination – B/W | 0.05 Lux @ (F2.0, AGC ON); 0 Lux with IR |
| Lens | 4mm @ F2.0 |
| Field of View | Diagonal: 97.4°; Horizontal: 82.3°; Vertical: 44.7° |
| Shutter Speed | Self-Adaptive Shutter |
| Fill Light | 6 × 850nm IR Fill Lights + 4 × White LED Fill Lights |
| Night Vision | Full-Color Night Vision / Infrared Night Vision / Dual-Light Alert |
| DNR | 3D DNR |
| Audio Input | Built-in Microphone |
| Audio Output | Built-in Speaker |
| Pan & Tilt | Horizontal: 350°; Vertical: 90° |
| Video Storage | TF Card Storage / Cloud Storage |
| Maximum Resolution | 2688 × 1660 |
| Frame Rate | 12 FPS |
| Storage Interface | 1 × TF Card Slot, Maximum 256GB |
| Power Interface | 1 × Type-C Power Interface |
| Button | 1 × Reset Button |
| Video Compression | H.265 / H.264 |
| Audio Compression | G.711A |
| One-Touch Provisioning | Wi-Fi Network Provisioning |
| Protocol | JFTECH Cloud Proprietary Protocol |
| Interface Protocol | JFTECH Cloud Proprietary Protocol |
| General Functions | Anti-Flicker, Dual-Stream, Mirroring, Password Protection, Watermark |
| Wi-Fi Standard | IEEE 802.11b/g/n |
| Frequency Range | 2.412 GHz – 2.484 GHz |
| Operating Conditions | -10°C to 50°C; Humidity ≤95% (Non-Condensing) |
| Power Supply | DC 5V/1A |
| Night Vision Distance | 10m |
| Pickup Distance | 5m |
| Housing Material | ABS, PC |
| Net Weight | Approx. 206g |
| Dimensions | Approx. 115mm × 74mm × 74mm |
| IP Grade | IP5X |
