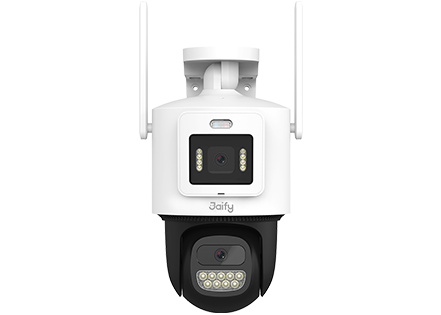

S2-6g-D2 3K+ Outdoor 4G Dual-lens PT Camera
S2-6G-D2 is an outdoor 4G dual-lens PT camera developed by
Jaify, with dual-lens design, which can monitor two different
areas at the same time, with 3K+
(6MP) resolution. It features a
removable SIM card slot for 4G network connectivity, supporting
human detection, human tracking, regional vigilance, dual-light
alert, and full-color night vision. IP66-rated waterproof and
dustproof for outdoor use. It is suitable for family outdoor, villas,
parks, scenic spots, parking lots.
| Category | Specification |
|---|---|
| Model | S2-6G-D2 |
| Resolution | 3K+ (6MP) |
| Image Sensor | 2 × 1/2.9″ High-Performance CMOS Sensors |
| Minimum Illumination – Color | 0.05 Lux @ (F1.6, AGC ON); 0 Lux with Light |
| Minimum Illumination – B/W | 0.05 Lux @ (F1.6, AGC ON); 0 Lux with IR |
| Lens | Fixed Lens: 4mm @ F1.6 + PT Lens: 6mm @ F1.6 |
| Field of View – Fixed Lens | Diagonal: 95°; Horizontal: 79°; Vertical: 42° |
| Field of View – PT Lens | Diagonal: 60.5°; Horizontal: 50.5°; Vertical: 29° |
| Shutter Speed | Self-Adaptive Shutter |
| Fill Light | 17 × 850nm IR Fill Lights + 17 × White LED Fill Lights |
| Night Vision | Full-Color Night Vision / Infrared Night Vision / Dual-Light Alert |
| DNR | 3D DNR |
| Audio Input | Built-in Microphone |
| Audio Output | Built-in Speaker |
| Pan & Tilt | Horizontal: 355°; Vertical: 95° |
| Video Storage | TF Card Storage / Cloud Storage |
| Maximum Resolution | 2304 × 2592 |
| Frame Rate | 12 FPS |
| Storage Interface | 1 × TF Card Slot, Maximum 256GB |
| Power Interface | 1 × DC 12V/1A Power Interface |
| SIM Card Interface | 1 × Self-Popping SIM Card Slot |
| Wired Network | 1 × RJ45 (10M/100M Adaptive Ethernet Port) |
| Button | 1 × Reset Button |
| Video Compression | H.265 / H.264 |
| Audio Compression | G.711A |
| One-Touch Provisioning | 4G Network Provisioning |
| Protocol | JFTECH Cloud Proprietary Protocol |
| Interface Protocol | JFTECH Cloud Proprietary Protocol |
| General Functions | Anti-Flicker, Dual-Stream, Mirroring, Password Protection, Watermark |
| 4G Frequency Band – EU Version | LTE FDD: B1/B3/B5/B7/B8/B20/B28 |
| 4G Frequency Band – APAC Version | LTE FDD: B1/B3/B5/B8; LTE TDD: B34/B38/B39/B40/B41 |
| Operating Conditions | -10°C to 50°C; Humidity ≤95% (Non-Condensing) |
| Power Supply | DC 12V/1A |
| Night Vision Distance | 30m |
| Pickup Distance | 5m |
| Housing Material | ABS, PC |
| Net Weight | Approx. 799g |
| Dimensions | Approx. 153mm × 208mm × 292mm |
| IP Grade | IP66 |
