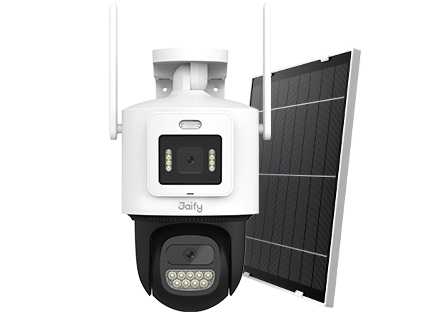

S2-4GS-D2 2K+ Outdoor 4G AOV Dual-lens PT Camera
The S2-4GS-D2 is an outdoor 4G AOV dual-lens PT camera developed by
Jaify，with dual lens design, which can monitor two different areas at the
same time. Support 24-hour all-day recording. It features a removable SIM
card slot for 4G network connectivity and is powered by a built-in
rechargeable lithium battery, which also supports solar panel charging for
extended operation. With 2K+
(4MP) resolution and 360° panoramic
monitoring, it offers human detection, human tracking, and Ultra full-color
night vision. IP66-rated waterproof and dustproof for outdoor use. It is
suitable for monitoring applications in areas without network or power
infrastructure, such as resid
| Category | Specification |
|---|---|
| Model | S2-4GS-D2 |
| Resolution | 2K+ (4MP) |
| Image Sensor | 2 × 1/2.9″ High-Performance CMOS Sensors |
| Minimum Illumination | 0.001 Lux @ (F1.0, AGC ON); 0 Lux with Light |
| Lens | Fixed Lens: 4mm @ F1.0 + PT Lens: 6mm @ F1.0 |
| Field of View – Fixed Lens | Diagonal: 95.5°; Horizontal: 81.3°; Vertical: 44.3° |
| Field of View – PT Lens | Diagonal: 57.8°; Horizontal: 50.1°; Vertical: 27.7° |
| Shutter Speed | Self-Adaptive Shutter |
| Fill Light | 17 × White LED Fill Lights |
| Night Vision | Ultra Full-Color Night Vision |
| DNR | 3D DNR |
| Audio Input | Built-in Microphone |
| Audio Output | Built-in Speaker |
| Pan & Tilt | Horizontal: 355°; Vertical: 95° |
| Video Storage | TF Card Storage / Cloud Storage |
| Maximum Resolution | 1920 × 2160 |
| Frame Rate | 12 FPS |
| Storage Interface | 1 × TF Card Slot, Maximum 128GB |
| Power Interface | 1 × Type-C Power Interface |
| SIM Card Interface | 1 × Self-Popping SIM Card Slot |
| Buttons | 1 × Reset Button + 1 × Power Switch Button |
| Video Compression | H.265 / H.264 |
| Audio Compression | G.711A |
| One-Touch Provisioning | 4G Network Provisioning |
| Protocol | JFTECH Cloud Proprietary Protocol |
| Interface Protocol | JFTECH Cloud Proprietary Protocol |
| General Functions | Anti-Flicker, Dual-Stream, Password Protection, Watermark |
| 4G Frequency Band – EU Version | LTE FDD: B1/B3/B5/B7/B8/B20/B28 |
| 4G Frequency Band – APAC Version | LTE FDD: B1/B3/B5/B8; LTE TDD: B34/B38/B39/B40/B41 |
| Operating Conditions | -10°C to 50°C; Humidity ≤95% (Non-Condensing) |
| Power Supply | Built-in 10,400mAh Lithium Battery + 7W Solar Panel |
| Night Vision Distance | 30m |
| Pickup Distance | 5m |
| Housing Material | ABS, PC |
| Net Weight | Approx. 958g |
| Dimensions | Approx. 153mm × 208mm × 292mm |
| IP Grade | IP66 |
