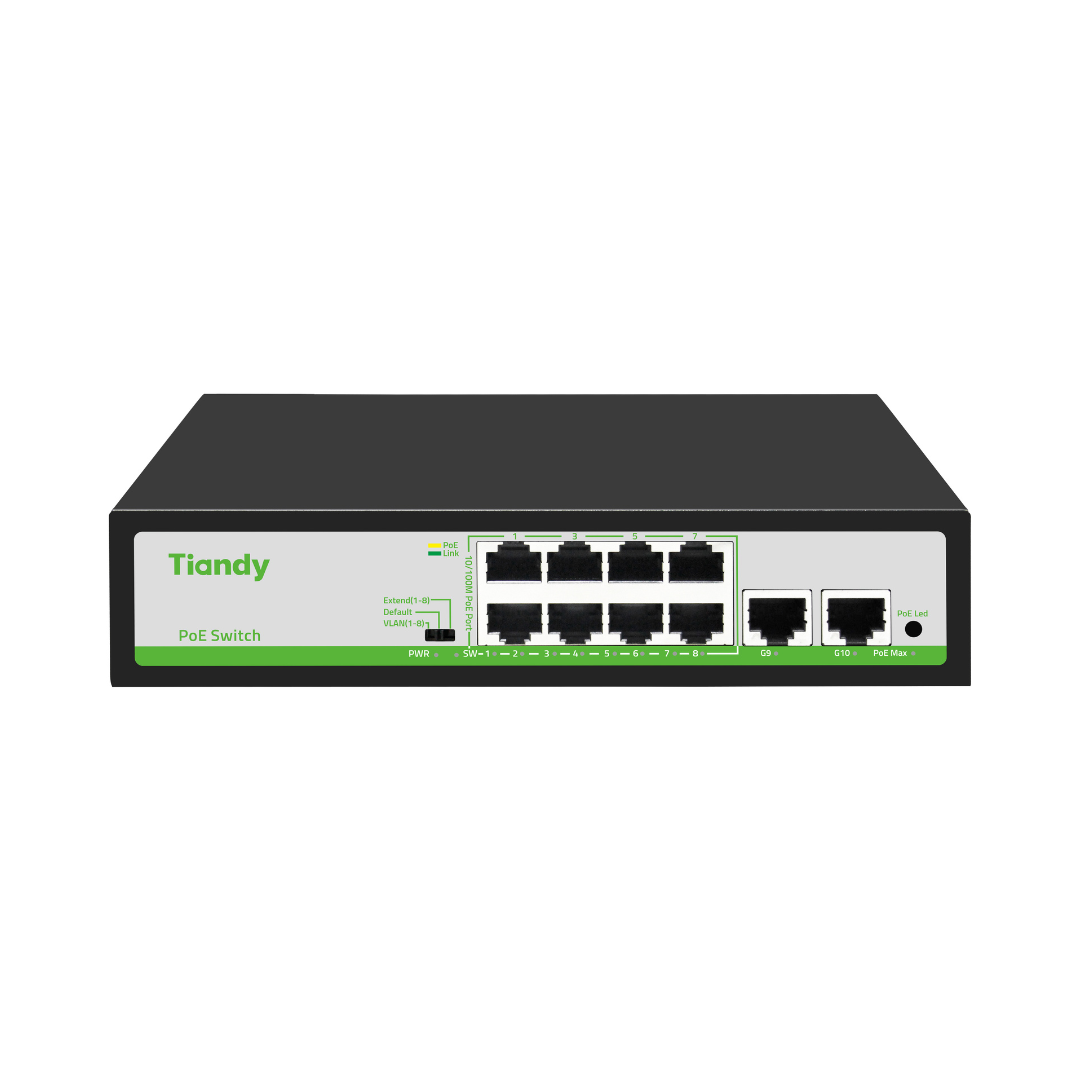

Tiandy TC-P3S010 Spec:F/0820/AT/90 PoE Switch

Original price was: ₨ 16,500.Current price is: ₨ 14,500. SHOP

Categories: POE SWITCHES, TIANDY

Specification Category	Details
Model Name	TC-P3S010 Spec:F/0820/AT/90
Device Type	Unmanaged PoE Ethernet Switch
Ethernet Ports	8 × PoE RJ45 (10/100 Mbps)
Uplink Ports	2 × RJ45 (10/100 Mbps)
PoE Standard	IEEE 802.3af / IEEE 802.3at
Max PoE Power per Port	Up to ~30 W
Total PoE Power Budget	~90 W
Switching Bandwidth	~2 Gbps
Forwarding Rate (Throughput)	~1.488 Mpps
Transfer Mode	Store-and-forward
Auto MDI/MDIX	Supported
Flow Control	IEEE 802.3x (full duplex) / Back-pressure (half duplex)
PoE Priority / QoS	Supported (Port priority 1–8)
Modes (via DIP switch)	Default / VLAN / Extend
VLAN (Port Isolation)	Supported
Extend Mode	Up to ~220 m @ 10 Mbps (ports 1–8)
Surge & ESD Protection	4 kV surge; ESD 8 kV air / 6 kV contact
LED Indicators	Power, PoE, Link/Act, DIP status
Housing	Metal desktop
Dimensions	~200 × 118 × 44 mm
Weight	~0.68–0.69 kg
Power Input	AC 100–240 V
Operating Temp.	–10 °C to +50 °C
Certifications	CE, RoHS (varies by seller)
