| Category | Specification |
|---|---|
| Image Sensor | 1/3″ CMOS |
| Min. Illumination | Color: 0.02 Lux @ (F1.6, AGC ON)B/W: 0 Lux with IR |
| Shutter Time | 1s ~ 1/100000s |
| Day/Night Mode | IR-cut Filter with Auto Switch (ICR) |
| Smart IR | Yes |
| WDR | DWDR |
| S/N Ratio | >52 dB |
| Angle Adjustment | Pan: 0° ~ 360°Tilt: 0° ~ 80°Rotate: 0° ~ 360° |
| Lens Type | Fixed Focal Lens |
| Focal Length | 2.8 mm |
| Lens Mount | M12 |
| Aperture Range | F1.6 |
| Aperture Type | Fixed |
| Field of View (FOV) | Horizontal: 91.5°Vertical: 51.2°Diagonal: 103.6° |
| DORI Distance | Detect: 56 mObserve: 22.2 mRecognize: 11.2 mIdentify: 5.6 m |
| IR LEDs | 2 |
| IR Distance | Up to 30 m |
| IR Wavelength | 850 nm |
| White LEDs | 2 |
| White Light Distance | Up to 15 m |
| Video Compression | S+265 / H.265 / H.264B / H.264M / H.264H |
| Video Bit Rate | 32 kbps ~ 6 Mbps |
| Audio Compression | G.711A / G.711U |
| Audio Sampling Rate | 8 kHz |
| Max. Resolution | 4MP, 2560 × 1440 @ 30fps |
| Main Stream (PAL) | 25fps (2560×1440, 2304×1296, 1920×1080, 1280×720) |
| Main Stream (NTSC) | 30fps (2560×1440, 2304×1296, 1920×1080, 1280×720) |
| Sub Stream (PAL) | 25fps (704×576, 704×288, 640×360, 352×288) |
| Sub Stream (NTSC) | 30fps (704×480, 704×240, 640×360, 352×240) |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto / Semi-Auto / Manual / Sunshine / Nature Light / Warm Light Lamp / Daylight Lamp / Filament Lamp / Lock White Balance |
| OSD | Overlay of additional characters in 1 region, 1 line, max. 48 characters; 16×16 / 32×32 / 48×48 / 64×64 lattice |
| Privacy Mask | 4 Black Static Areas |
| Defog | Yes |
| General Alarm | Motion Detection |
| Exception Alarm | IP Address Conflict |
| Protocols | RTSP, HTTP, TCP, UDP, ICMP, DHCP, DNS, NTP, IPv4, SSH, Unicast |
| System Compatibility | ONVIF (Profile S/T), SDK, CGI, Milestone |
| Remote Connection | ≤ 2 Users |
| Client Software | Easy7 VMS |
| Web Browser Support | IE10+, Firefox 52+, Edge 89+, Safari 11+, Chrome 57+ |
| Communication Interface | 1 × RJ-45 (10/100 Base-T) |
| Built-in Mic | 1 × Built-in Microphone |
| Web Client Language | English |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Operating Humidity | ≤ 95% RH |
| Storage Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Storage Humidity | 10% ~ 95% RH (Non-condensing) |
| Power Supply | PoE (IEEE 802.3af), Max. 2.5W |
| Protection | Surge Protection: 4000VESD Protection: 6000VIP67 |
| Boundary Dimensions | 140 × 60 × 60 mm (L × W × H) |
| Package Dimensions | 155 × 75 × 85 mm (L × W × H) |
| Net Weight | 0.15 kg |
| Gross Weight | 0.20 kg |

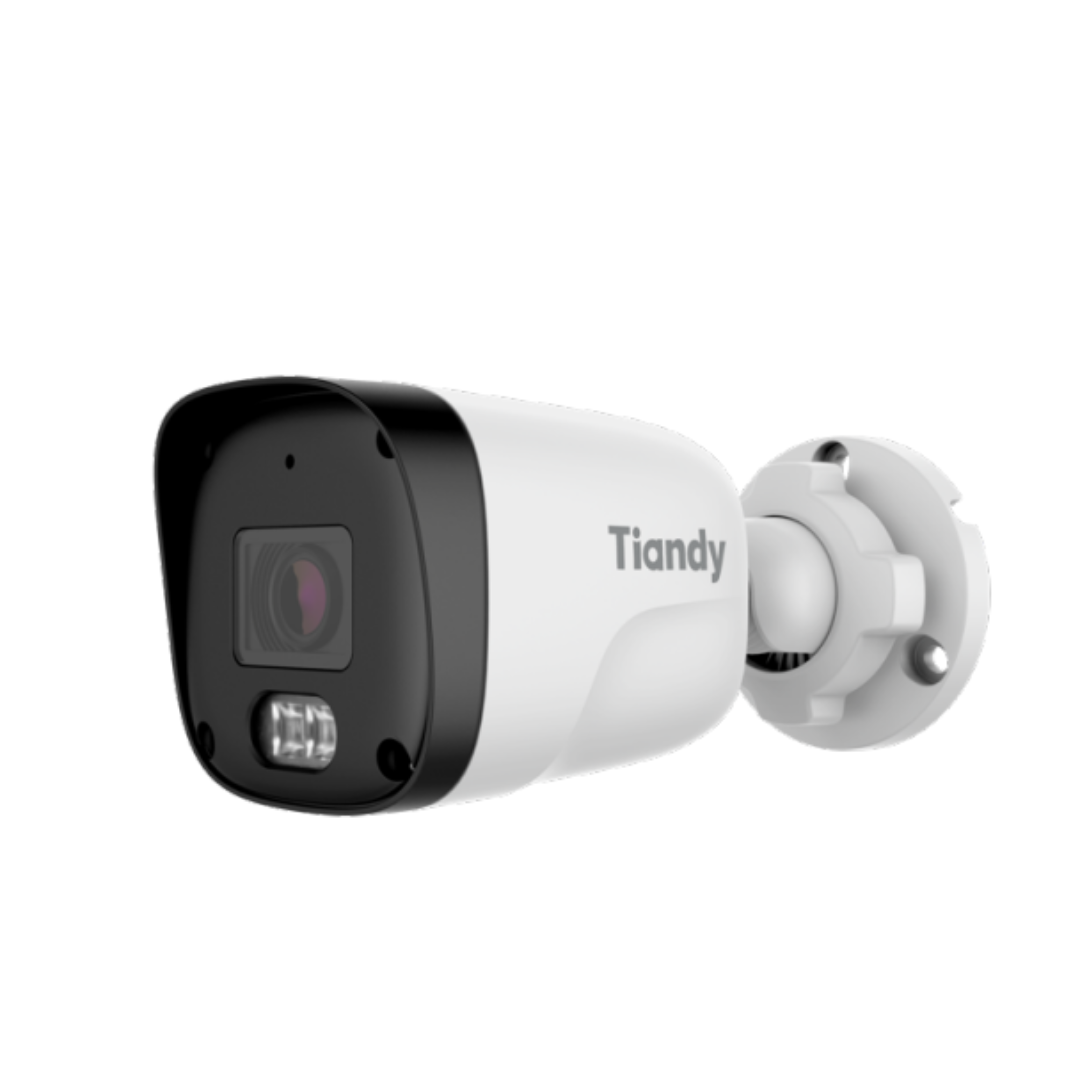

Be the first to review “Tiandy TC-C341N 1ANA-28 Bullet Camera Color Maker”
