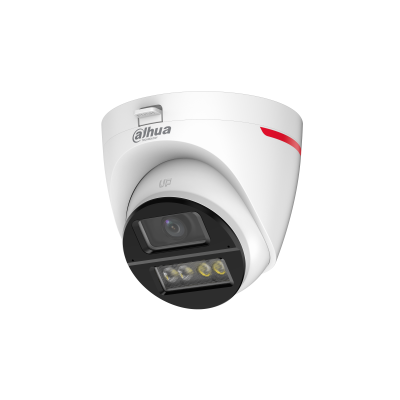

Dahua DH-HAC-HDW1249XP-A-PRO 2MP WizColor HDCVI Fixed-focal Eyeball Camera

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s

Min. Illumination

0.0001 lux@F1.0 (Color, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

50 m (164.04 ft)

Illuminator On/Off Control

Auto

Illuminator Number

4 (Warm light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.0

Field of View

2.8 mm: H: 101°; V: 53.4°; D: 119.5°
3.6 mm: H: 81.5°; V: 44.3°; D: 95.7°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.1 m (3.61 ft)
3.6 mm: 1.7 m (5.58 ft)

DORI Distance

Video

Video Frame Rate

CVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960H;
NTSC: 960H

Resolution

1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Color

BLC

BLC; HLC; WDR

WDR

130 dB

White Balance

Auto

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

Yes (It needs to be controlled through the XVR)

Illumination Mode

Smart Light

Mirror

Yes (It needs to be controlled through the XVR)

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;

Audio

Built-in Mic

Yes, built-in dual Mic

Camera Audio

CVI

Pick-up Distance

12 m (39.37 ft)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)

Power

Power Supply

12 VDC (±30%)

Power Consumption

Max 5.6 W (12 VDC, LED on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Protection

IP67

Anti-corrosion Level

Basic Protection

Structure

Casing Material

Dome (metal + plastic) + plastic enclosure

Product Dimensions

Φ109.9 mm × 102.2 mm (Φ4.33″ × 4.02″)

Net Weight

0.33 kg (0.73 lb)

Gross Weight

0.45 kg (0.99 lb)

Installation

Wall mount; ceiling mount; vertical pole mount
