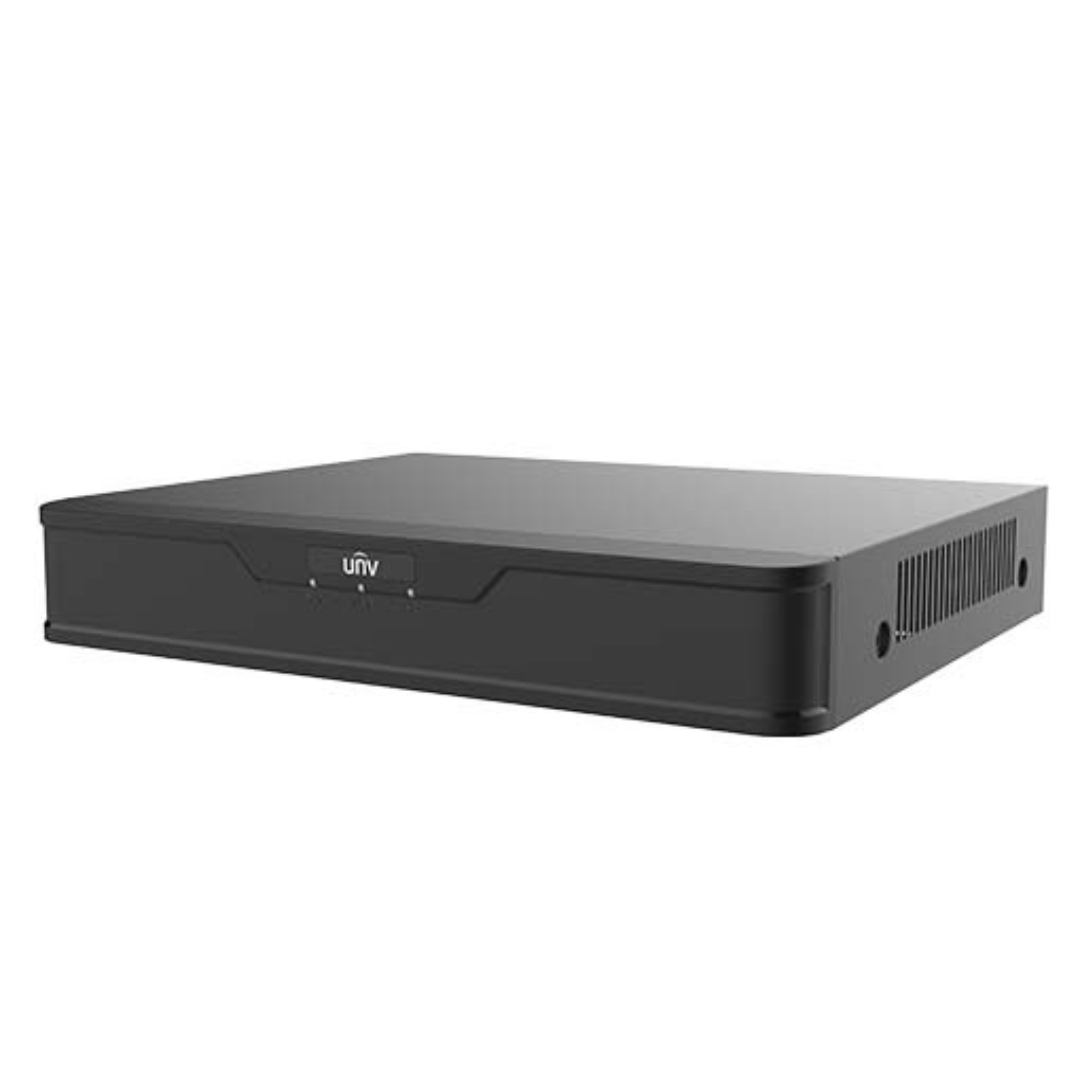

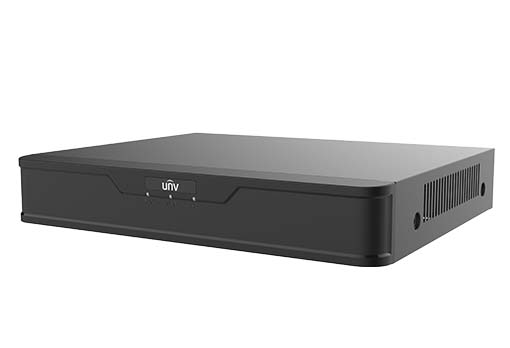

UNIVIEW XVR301-16G3 16CH 5MP HYBRID XVR TVI/CVI/AHD/CVBS/IP
Original price was: ₨ 28,000.₨ 20,000Current price is: ₨ 20,000. SHOP
Support H.265/H.264 video formats
Support audio over coaxial cable(only for TVI cameras)
Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
16-channel BNC input
Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
Long transmission distance over coaxial cable
Support mainstream cameras of ONVIF and RTSP protocols
| Video/Audio Input | ||
| Analog Video Input | 16-ch, BNC | |
| IP Video Input | 8-ch(up to 16-ch after analog camera conversion) | |
| Supported Analog Camera Types | Support AHD input: 5MP@12fps 4MP@15fps 1080P@30fps 720P@30fps Support TVI input: 5MP@12fps 4MP@15fps 1080P@30fps 720P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input |
|
| Audio Input | 1-ch, RCA | |
| Audio Compression | G.711U | |
| Video/Audio Output | ||
| VGA Output | 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz | |
| HDMI Output | 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz | |
| Audio Output | 1-ch, RCA | |
| Synchronous Playback | HD:8-ch SD:16-ch |
|
| Live view display | HDMI/VGA: 1/4/6/8/9/16/25 | |
| Two-way Audio | 1-ch, RCA | |
| Snapshot | ||
| FTP/Schedule/Event Snapshot | Schedule snapshot is not supported 16-ch snapshot, up to 704*576 resolution |
|
| Network | ||
| Incoming Bandwidth | 40Mbps (up to 56Mbps after all analog camera conversion) | |
| Outgoing Bandwidth | 64Mbps | |
| Remote Users | 128 | |
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP | |
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
|
| Recording Resolution | 5MP Lite/4MP Lite /1080P Lite/720P/D1/CIF | |
| Recording Frame Rate |
Main stream: | Sub stream: |
| 5MP Lite@6fps | D1@6fps | |
| 4MP Lite@8fps | D1@8fps | |
| 1080P Lite@12fps | D1@12fps | |
| 720P@12fps | D1@12fps | |
| Audio Sample Rate | 8KHz,16 bit per channel | |
| Audio Bit Rate | 64Kbps per channel | |
| Decoding | ||
| Capability | Analog: 8 x 5MP Lite@6, 8 x 4MP Lite@8, 8 x 1080P Lite@12 IP: 1 x 8MP@30, 2 x 4MP@30, 4 x 1080P@30 |
|
| Hard Disk | ||
| SATA | 1 SATA interface | |
| Capacity | Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature) | |
| Smart Alarm | ||
| VCA Detection | Ultra Motion Detection(UMD) for analog:8-ch | |
| VCA Search | Behavior Search | |
| General Alarm | ||
| General Alarm | Motion detection | |
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |
| External Interface | ||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | |
| USB Interface | Rear panel: 2 x USB2.0 | |
| Serial Interface | 1 x RS485 | |
| General | ||
| Power Supply | 12V DC Power Consumption: ≤ 10 W( without HDD ) |
|
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | |
| Dimensions(W×D×H) | 260mm ×226mm× 47mm (10.2″ × 8.9″×1.8″) | |
| Weight ( without HDD ) | ≤1.1 Kg ( 2.42lb ) | |
| Certification | ||
