Camera |
|
|
Image Sensor |
Panorama: 1/2.9″CMOS Detail: 1/2.9″CMOS |
|
Min. Illumination |
Color:0.0004lux@(F1.0,AGC ON) |
|
Shutter Time |
1s-1/100000s |
|
Day&Night |
Fixed IR-cut |
|
WDR |
DWDR |
|
S/N |
≥52dB |
|
Angle Adjustment |
Panorama:-60~60°(P) Details:0~345°(P); Panorama:5~15° Details:0~90° |
|
Lens |
|
|
Lens Type |
Fixed focal lens |
|
Focal Length |
Panorama: 4mm Detail: 4mm |
|
Lens Mount |
M12 |
|
Aperture Range |
F1.0 |
|
Aperture Type |
Fixed |
|
Field of View |
Panorama:79.8°(H); Detail:79.8°(H); Panorama:44.7°(V); Detail:44.7°(V); Panorama:90.8°(D); Detail:90.8°(D) |
|
DORI Distance |
Panorama: Detect: 57.14 m Observe: 22.68 m Recognize: 11.43 m Identify: 5.71 m Detail: Detect: 57.14 m Observe: 22.68 m Recognize: 11.43 m Identify: 5.71 m |
|
Pan&Tilt |
|
|
Pan Speed |
30°/s |
|
Tilt Speed |
25°/s |
|
Preset |
64 |
|
Illuminator |
|
|
IR LEDs |
Panorama:4 Detail:4 |
|
IR Distance |
30m |
|
Wavelength |
850nm |
|
White LEDs |
Panorama:4 Detail:4 |
|
Whitelight Distance |
20m |
|
Red and Blue Alarm Flash |
Yes |
|
Compression Standard |
|
|
Video Compression |
S+265/H.265 |
|
Video Bit Rate |
1.2Mbps |
|
Audio Compression |
G.711A |
|
Audio Sampling Rate |
16kHz |
|
Image |
|
|
Max. Resolution |
Panorama:3MP,2304×1296@20fps Detail:3MP,2304×1296@20fps |
|
Main Stream |
Panorama: PAL:20fps(2304×1296) Detail: PAL:20fps(2304×1296) |
|
Sub Stream |
PAL:15fps(704×576) |
|
AGC |
Yes |
|
3D DNR |
Yes |
|
White Balance |
Auto |
|
OSD |
48*48; Lattice |
|
Feature |
|
|
General Alarm |
Smart Alarm(human and vehicle detection) |
|
Exceptions Alarm |
Disk Full; Disk R/W Error |
|
Linkage Method |
Trigger Sound; Trigger Warmlight; Trigger Recording; Trigger Capture |
|
Auto-Tracking |
Auto-Tracking |
|
Network |
|
|
Protocols |
TCP/IP; UDP; ICMP; DNS; NTP; IPv4; SSH; Unicast |
|
Remote Connection |
≤2 |
|
Moblie Client |
EasyLive Plus |
|
Interface |
|
|
Built-in Mic |
1×Built-in Mic |
|
Built-in Speaker |
1×Built-in Loudspeaker |
|
On-board Storage |
Support microSD/microSDHC/microSDXC card,up to 256GB |
|
General |
|
|
Operating Temperature |
-20℃~50℃(14℉~122℉) (Charge:-20℃~50℃) |
|
Operating Humidity |
≤95%RH |
|
Storage Temperature |
-20℃~50℃(14℉~122℉) |
|
Storage Humidity |
10%~95%RH(non-condensing) |
|
Power Supply |
DC5V±25%,Max. 10W |
|
Protection |
Surge500V; ESD6000V; IP65 |
|
Boundary Dimensions |
183(L)105W)202(H)mm |
|
Package Dimensions |
315(L)225(W)180(H)mm |
|
GrossWeight |
1.66kg |
| Weight | 1 kg |
|---|

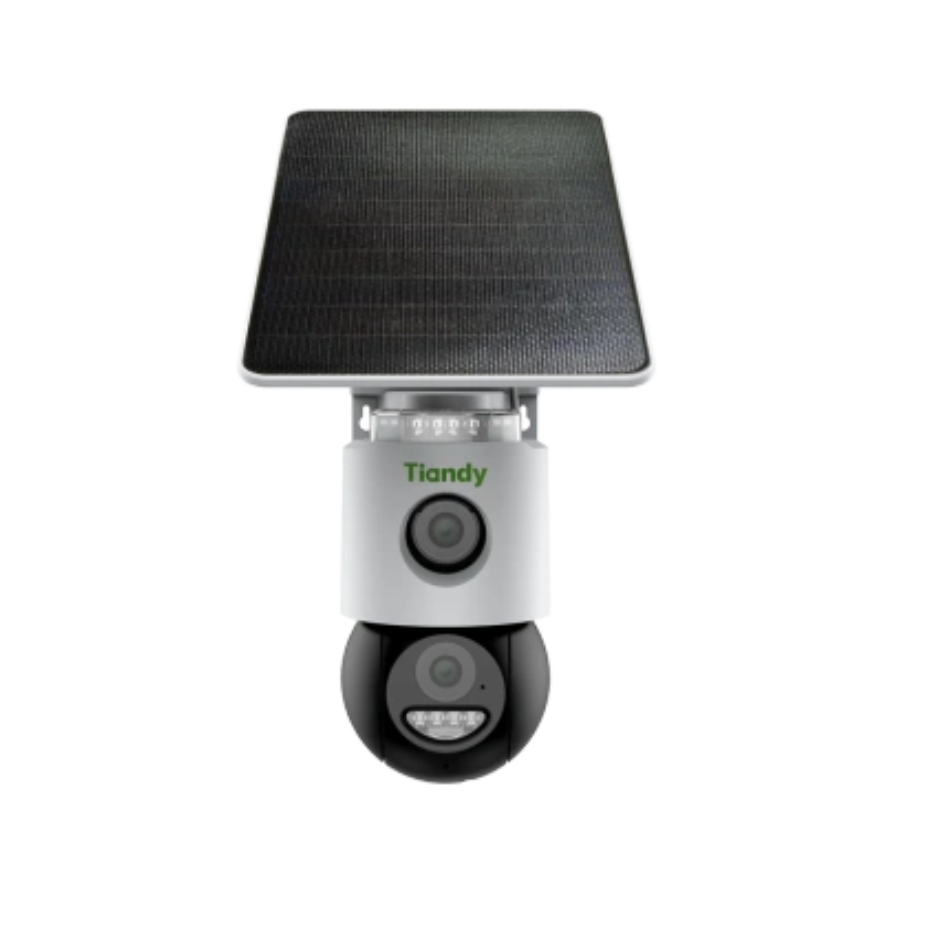

Be the first to review “TIANDY TC-H363U 9DA-4 6MP Fixed Color Maker 4G PT Camera”
