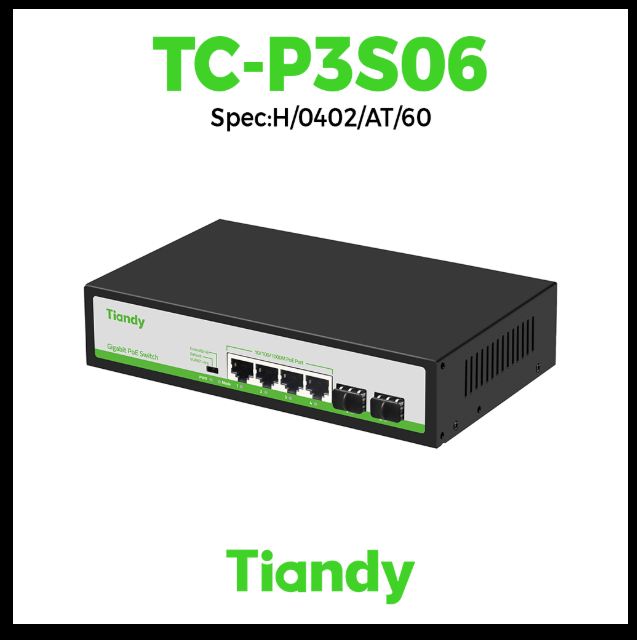

Tiandy TC-P3S06 Spec:H/0402/AT/60 PoE Switch
Original price was: ₨ 14,000.₨ 11,500Current price is: ₨ 11,500. SHOP
• 4 × Gigabit PoE ports (10/100/1000 Mbps) — enables power + data on same cable
• 2 × 1 Gbps SFP uplink ports — for fiber or high-speed backbone connections
• Total PoE Power Budget ~60 W (supports IEEE 802.3af/at)
• Port 1 supports BT 40 W for higher-power PoE devices
• Auto MI/MDIX, store-and-forward switching, flow control
• VLAN/Default/Extend modes via DIP switch
• LED indicators for status, PoE, link/activity
• Ideal for powering IP cameras, Wi-Fi access points, VoIP phones, etc.
| Specification / Feature | Details |
|---|---|
| Model | Tiandy TC-P3S06 Spec:H/0402/AT/60 |
| Device Type | Unmanaged PoE Ethernet Switch |
| PoE Ports | 4 × 10/100/1000 Mbps PoE Ports (auto-adaptive) |
| Uplink Ports | 2 × 1000 Mbps SFP uplink ports |
| PoE Standard Compliance | IEEE 802.3af (15.4 W), IEEE 802.3at (30 W) |
| BT 40W Support | Port 1 supports BT 40 W (high-power PoE) |
| Total PoE Power Budget | ~60 W (approx.) |
| Ethernet Speed | 10/100/1000 Mbps auto-adaptive |
| Switching Bandwidth | Gigabit class (high bandwidth for data throughput) |
| Flow Control | Full-duplex: IEEE 802.3x, Half-duplex: Back-pressure |
| Switching Method | Store-and-forward |
| Auto MDI/MDIX | Supported on all ports |
| LED Indicators | PWR, Mode (DIP), Link/Activity, PoE status |
| DIP Switch Modes | Default, VLAN, Extend modes |
| Network Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3z |
| Surge & ESD Protection | Built-in surge & electrostatic protection |
| Operating Temp. | −10 °C to +50 °C (typical) |
| Power Input | AC 100–240 V |
| Physical Construction | Sturdy metal housing |
| Installation | Desktop / rack / wall mount capable |
| Typical Use | IP cameras, VoIP phones, Wi-Fi AP, PoE devices |
