Tiandy TC-C34LQ Spec:LK/I3W/A/E/Y/M/S/H/LPR/2.8-12mm Bullet Camera
₨ 142,500 SHOP
Metal+plastic housing
Up to 4MP,2688×1520@30fps
S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR
IR range up to 30m
1×Built-in Mic, 1×Built-in Loudspeaker
Support microSD/microSDHC/microSDXC card,up to 512GB
Support smart surveillance
Support human/vehicle classification
Operating conditions -35℃~65℃(-31℉~149℉), ≤95%RH
DC12V±25%,Max. 14W, PoE:IEEE 802.3at,Max. 15.5W
IP67
Camera
| Image Sensor | 1/1.8″CMOS |
| Min. Illumination | Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR |
| Shutter Time | 1s~1/100000s |
| Day&Night | IR-cut filter with auto switch (ICR) |
| Smart IR | Yes |
| WDR | 120dB |
| S/N | >43dB |
| Angle Adjustment | 0~360°(P); 0~90°(T); 0~360°(R) |
Lens
| Lens Type | Motorized |
| Focal Length | 2.8~12mm |
| Lens Mount | Φ14 |
| Aperture Range | F1.3~F2.2 |
| Aperture Type | Auto(DC-Iris) |
| Field of View | 49.4°~105.1°(H); 27.9°~59.2°(V); 56.6°~117.9°(D) |
| DORI Distance | Detect:38m~165m Observe:15m~65m Recognize:7.7m~33m Identify:3.9m~16.5m |
Illuminator
| IR LEDs | 4 |
| IR Distance | Up to 30m |
| Wavelength | 850nm |
| White LEDs | 3 |
| Whitelight Distance | 40m |
Compression Standard
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG |
| Video Bit Rate | 32k~16Mbps |
| Audio Compression | G.711A/G.711U/ADPCM_D/AAC_LC |
| Audio Sampling Rate | 8kHz/32kHz/48kHz |
| Max. Resolution | 4MP,2688×1520@30fps |
| Main Stream | PAL:25fps(2688×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720) NTSC:30fps(2688×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720) |
| Sub Stream | PAL:25fps(704×576, 704×288, 640×360, 352×288) NTSC:30fps(704×480, 704×240, 640×360, 352×240) |
| Third Stream | PAL:25fps(1280×720, 704×576, 640×360, 704×288, 352×288) NTSC:30fps(1280×720, 704×480, 640×360, 704×240, 352×240) |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
| ROI | 8 rectangular static areas |
| OSD | Overlay of additional characters in 5 regions, 1 line, with a maximum of 127 characters or 42 Chinese characters per region; 16*16/32*32/48*48/64*64/96*96; Vector/Lattice |
| Picture Overlay | 1*200×200 size BMP 24 color bit image overlay |
| Privacy Mask | 4 black static areas |
| Defog | Yes |
Feature
| General Alarm | Motion Detection; Mask Alarm; Alarm Input |
| Exceptions Alarm | Voltage Alarm; Disk Full; Disk R/W Error; IP Address Conflict; MAC Address Conflict; FTP Server Exception ; Network Disconnection |
| Linkage Method | Send Email; Trigger Sound; Trigger Warmlight; Trigger Recording; Trigger Capture; Notify Surveillance Center; Alarm Output |
| Video Analytics | Human/Vehicle Classification; Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Heatmap; Loitering; Running; People Counting; Crowed Detection; On Duty Detection; Video Abnormal; Audio Abnormal |
| Rules of Behavior Analyse In 1 Scene | 7 |
| Early Warning(EW) | Yes |
Network
| ANR | Yes |
| Protocols | RTSP; RTMP; HTTP; HTTPS; TCP; UDP; UPnP; ICMP; IGMP; SNMP v1\v2\v3; DHCP; DNS; DDNS; Easy DDNS; NTP; SMTP; TLS v1.2; SSL; 802.1X; QoS; IPv4; IPv6; PPPoE; SSH; Unicast; Multicast; RTCP; ARP; SRTP; FTP; SFTP |
| System Compatibility | ONVIF(Profile S/T/G/M) ; SDK; CGI; Milestone |
| Remote Connection | ≤7 |
| Client | Easy7 VMS |
| Moblie Client | EasyLive Plus |
| Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
Interface
| Communication Interface | 1×RJ-45 (10/100 Base-T) |
| Audio I/O | 1×input, two-core , max. input amplitude:3.3 Vpp, input impedance:1 KΩ, interface type:non-equilibrium; 1×output, two-core, max. output amplitude:3.3 Vpp, output impedance:100 Ω, interface type: non-equilibrium |
| Alarm I/O | 2×input,TTL,3mA,3.3VDC; 1×output,relay,1A,24VDC |
| Built-in Mic | 1×Built-in Mic |
| Built-in Speaker | 1×Built-in Loudspeaker |
| Reset Button | Yes |
| On-board Storage | Support microSD/microSDHC/microSDXC card,up to 512GB |
| RTC | Yes |
| Additional Interfaces | RS-485 |
General
| Web Client Language | 19 languages Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian |
| Operating Temperature | -35℃~65℃(-31℉~149℉) |
| Operating Humidity | ≤95%RH |
| Storage Temperature | -35℃~65℃(-31℉~149℉) |
| Storage Humidity | 10%~95%RH(non-condensing) |
| Power Supply | DC12V±25%,Max. 14W; PoE:IEEE 802.3at,Max. 15.5W |
| Protection | Surge4000V; ESD6000V; IP67 |

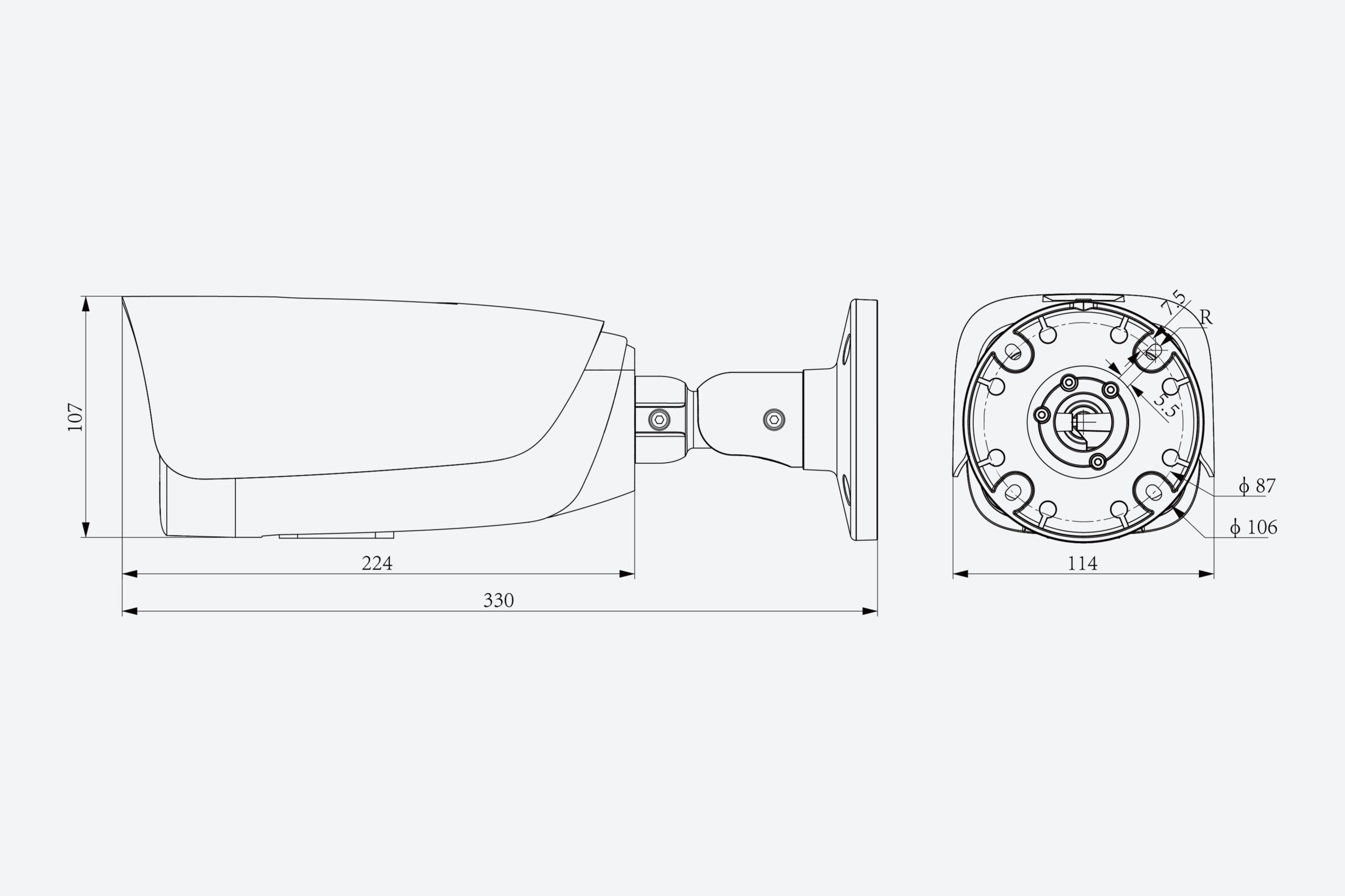

| Boundary Dimensions | 330(L)114(W)107(H)mm |
| Package Dimensions | 360(L)150(W)170(H)mm |
| GrossWeight | 1.86kg |
