Tiandy TC-R3104 Spec:I/B/P4/C/Eu/L/S/V2.0 AK NVR

Name: Tiandy TC-R3104 Spec:I/B/P4/C/Eu/L/S/V2.0 AK NVR
SKU: 1488
Availability: InStock

Original price was: ₨ 15,000.Current price is: ₨ 12,500. SHOP

Up to 4-ch IP camera accesses

Incoming/Outgoing bandwidth: 60Mbps/40Mbps

S+265, H.265, S+264, H.264 video formats

Max. decoding capability: 6MP(30fps)×1 or 1080P(30fps)×4

4-ch synchronous playback

Up to 8 TB capacity for each HDD

Simultaneous HDMI and VGA outputs

HDMI output at up to 1080P resolution

1×RJ-45, 10/100 Mbps self-adaptive Ethernet port

PoE interface, 4×RJ45, 10/100 Mbps self-adaptive Ethernet port

S+ 265 compression effectively reduces the storage space by up to 75%

Support cloud upgrade

Video and Audio

Access Channel	4
Incoming Bandwidth	60Mbps
Outgoing Bandwidth	40Mbps
Resolution	6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Preview Decoding Capability	6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×2, 3MP(30fps)×2, 1080P(30fps)×4, 720P(30fps)×4, 4CIF(30fps)×4; *: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
Playback Decoding Capability	6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×2, 3MP(30fps)×2, 1080P(30fps)×4, 720P(30fps)×4, 4CIF(30fps)×4
Third-party Camera Access	ONVIF(Profile S/T); RTSP
HDMI Output	HDMI: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1366×768(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz)
VGA Output	VGA: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1366×768(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz)
Multi-screen Display	Simultaneous Output: VGA: 1/2/3/4 HDMI: 1/2/3/4

Compression Standard

Network

Network Protocol	ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; ICMP; IGMP; IPv4; IPv6; NTP; RTCP; RTP; RTSP; SMTP; SSH; TCP; UDP; Unicast; UPnP
Mobile Client	EasyLive Plus (Android, iOS)
System Compatibility	CGI; SDK; P2P
Web	IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+

Recording Playback

Multi-channel Playback	4
Record Mode	Alarm Recording; Schedule Recording
Storage Method	Local HDD
Backup	USB storage device
Playback Function	Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Step/Digital Zoom/Instant Replay

Alarm

General Alarm	Motion Detection; Mask Alarm; Alarm Input(IPC)
Exceptions Alarm	Video Loss; Network Disconnected; No Disk; Illegal Access; Disk Full; Disk R/W Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; PoE Overload; Voltage Alarm(IPC); RTC Failure; IP Address Conflict; MAC Address Conflict; Disk Overload

Intelligent Analytics

AI by Camera

Smart Alarm; Human/Vehicle Classification

Storage

HDD Capacity

Up to 8 TB capacity for each HDD

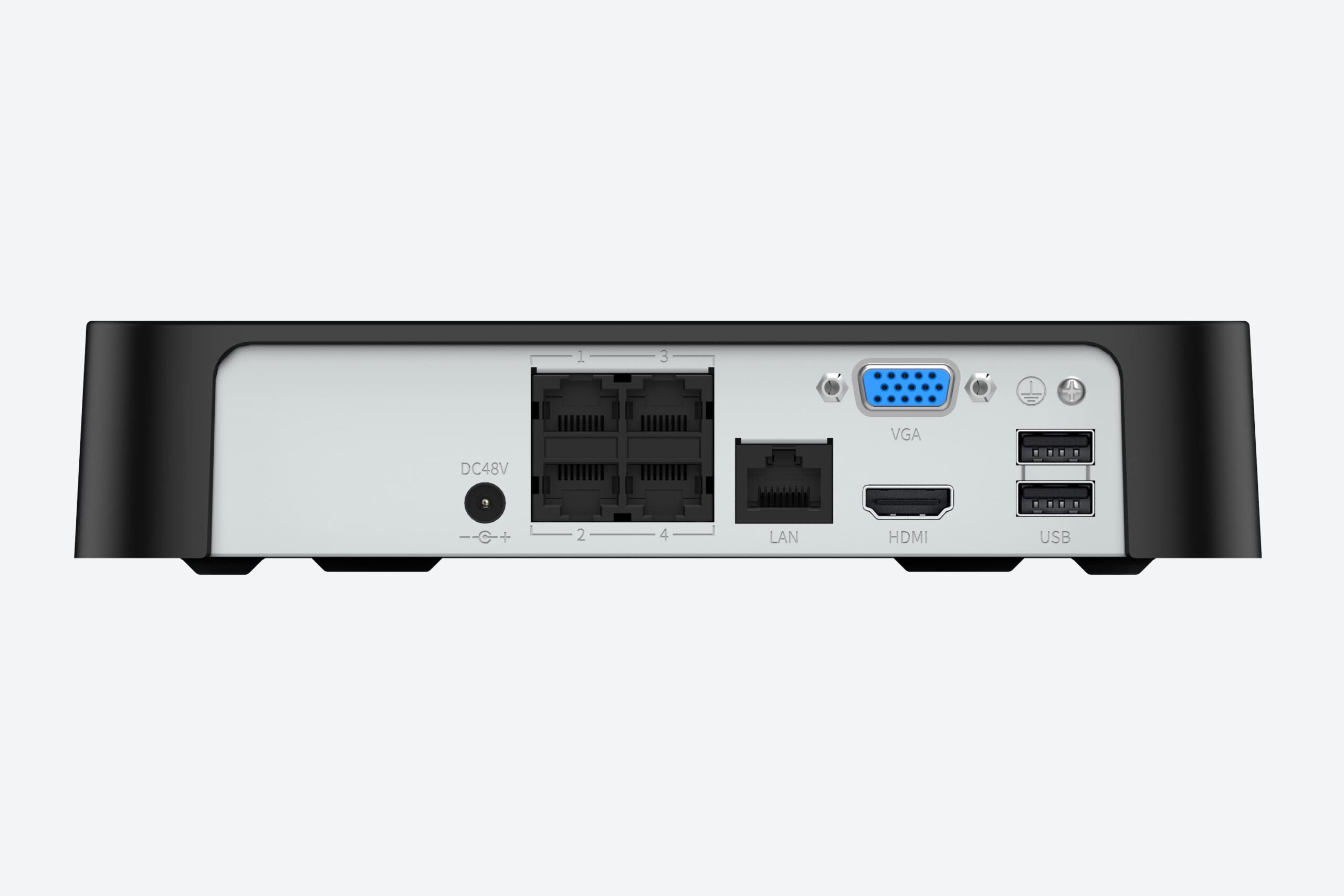

External Port

USB	2×USB2.0
HDMI	1×HDMI
VGA	1×VGA
Network Interface	1×RJ-45, 10/100 Mbps self-adaptive Ethernet port
SATA	1×SATA interface

PoE

PoE Interface	4×RJ45, 10/100 Mbps self-adaptive Ethernet port
PoE Budget	32W
Power per PoE Port	30W
Standard	IEEE 802.3 af/at

General

UI Language	English; Spanish; Italian; Turkish; French; Polish; Dutch; Hebrew; German; Portuguese
Power Supply	DC48V
Power Consumption	<10W(without HDD&without PoE)
NetWeight	0.44kg
GrossWeight	0.81kg

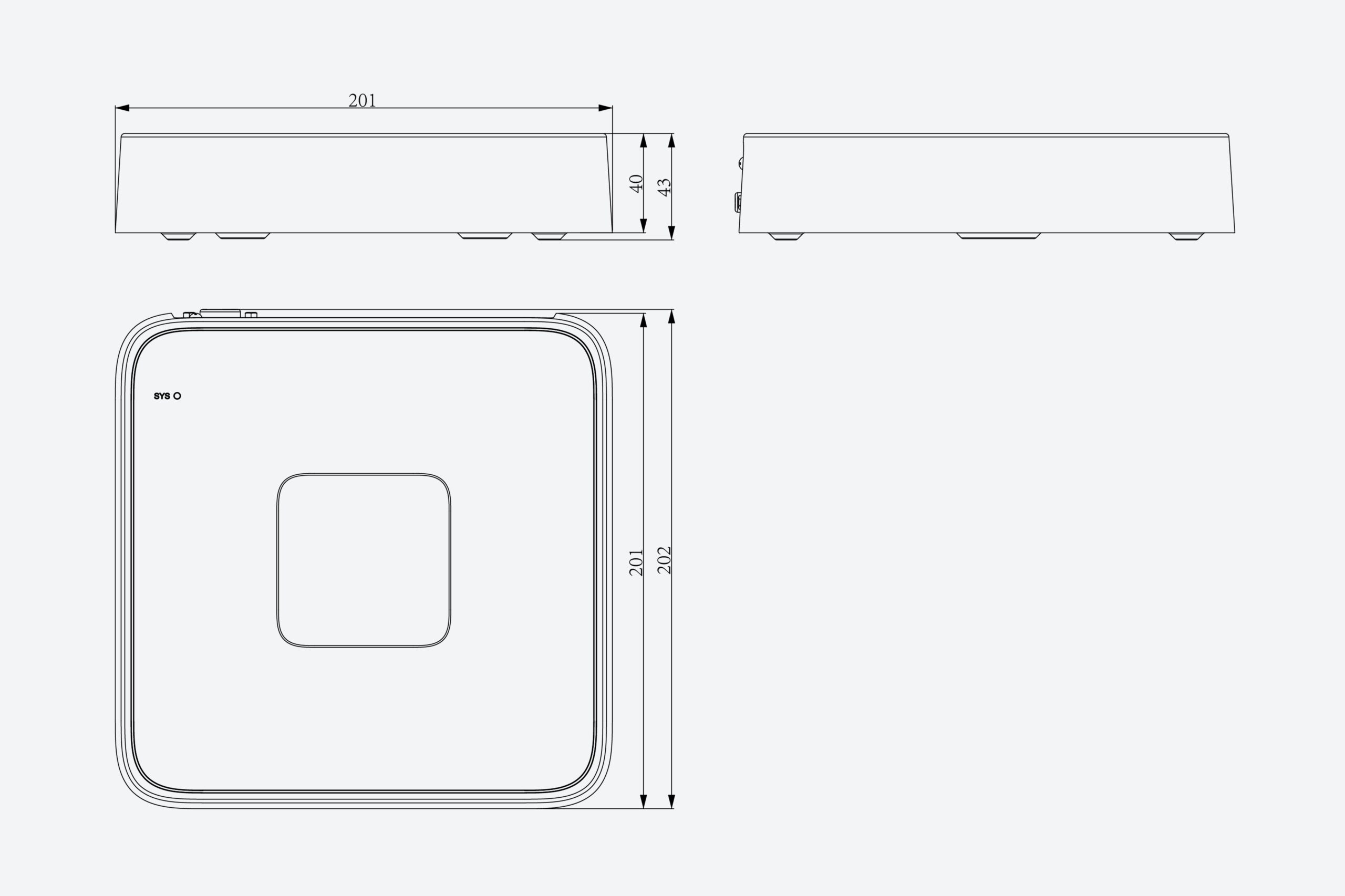

Boundary Dimensions	201(L)202(W)43(H)mm
Package Dimensions	315(L)70(W)235(H)mm
Operating Temperature	-10℃~+55℃ (+14℉~+131℉)
Operating Humidity	10%~90%RH (non-condensing)
Storage Temperature	-20℃~+60℃ (-4℉~+140℉)
Package Kit	Network Video Recorder1; Screw Pack1; Mouse1; European Standard Power Adapter(DC48V 1A)1; Instructions1; Parts List1
