Video and Audio |
|
|
Access Channel |
4 |
|
Incoming Bandwidth |
60Mbps |
|
Outgoing Bandwidth |
40Mbps |
|
Resolution |
6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
Preview Decoding Capability |
6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×2, 3MP(30fps)×2, 1080P(30fps)×4, 720P(30fps)×4, 4CIF(30fps)×4 |
|
Playback Decoding Capability |
6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×2, 1080P(30fps)×3, 720P(30fps)×4, 4CIF(30fps)×4 |
|
Third-party Camera Access |
ONVIF(Profile S/T); RTSP |
|
HDMI Output |
HDMI: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz) |
|
VGA Output |
VGA: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz) |
|
Multi-screen Display |
Simultaneous Output: VGA: 1/2/3/4 HDMI: 1/2/3/4 |
|
Compression |
|
|
Video |
S+265; H.265; S+264; H.264 |
|
Audio |
G711A; G711U; ADPCM_DIV4 |
|
Stream Type |
Video; Video & Audio |
|
Network |
|
|
Network Protocol |
ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; ICMP; IGMP; IPv4; IPv6; NTP; RTCP; RTP; RTSP; SSH; TCP/IP; UDP; Unicast; UPnP |
|
Mobile Phone Access |
Android; iOS; P2P |
|
System Compatibility |
CGI; SDK |
|
Web |
IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
|
Record Playback |
|
|
Multi-channel Playback |
4 |
|
Record Mode |
Alarm Recording; Schedule Recording |
|
Storage Method |
Local HDD |
|
Backup |
USB storage device |
|
Playback Function |
Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Digital Zoom |
|
Alarm |
|
|
General Alarm |
Motion Detection; Mask Alarm; Alarm Input(IPC) |
|
Exceptions Alarm |
Video Loss; Network Disconnected; No Disk; Illegal Access; Disk Full; Disk R/W Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; PoE Overload; Voltage Alarm(IPC); RTC Failure; IP Address Conflict; MAC Address Conflict |
|
Intelligent Analytics |
|
|
AI by Camera |
Smart Motion |
|
Storage |
|
|
HDD Capacity |
Up to 6 TB capacity for each HDD |
|
External Port |
|
|
USB |
2×USB2.0 |
|
HDMI |
1×HDMI |
|
VGA |
1×VGA |
|
Network Interface |
1×RJ-45, 10/100 Mbps self-adaptive Ethernet port |
|
SATA |
1×SATA interface |
|
PoE |
|
|
PoE Interface |
4×RJ45, 10/100 Mbps self-adaptive Ethernet port |
|
PoE Budget |
28W |
|
Power per PoE Port |
28W |
|
Standard |
IEEE 802.3 af/at |
|
General |
|
|
UI Language |
English; Spanish; Italian; Turkish; French; Polish; Dutch; Hebrew; German; Portuguese |
|
Power Supply |
DC48V |
|
Power Consumption |
<10W(without HDD&without PoE) |
|
NetWeight |
0.44kg |
|
GrossWeight |
0.81kg |
|
Boundary Dimensions |
200(L)200(W)43(H)mm |
|
Package Dimensions |
315(L)70(W)235(H)mm |
|
Operating Temperature |
-10℃~+55℃ (+14℉~+131℉) |
|
Operating Humidity |
10%~90%RH (non-condensing) |
|
Storage Temperature |
-20℃~+60℃ (-4℉~+140℉) |
|
Package Kit |
Network Video Recorder; Screw Pack; Mouse; European Standard Power Adapter (DC48V 1A) |

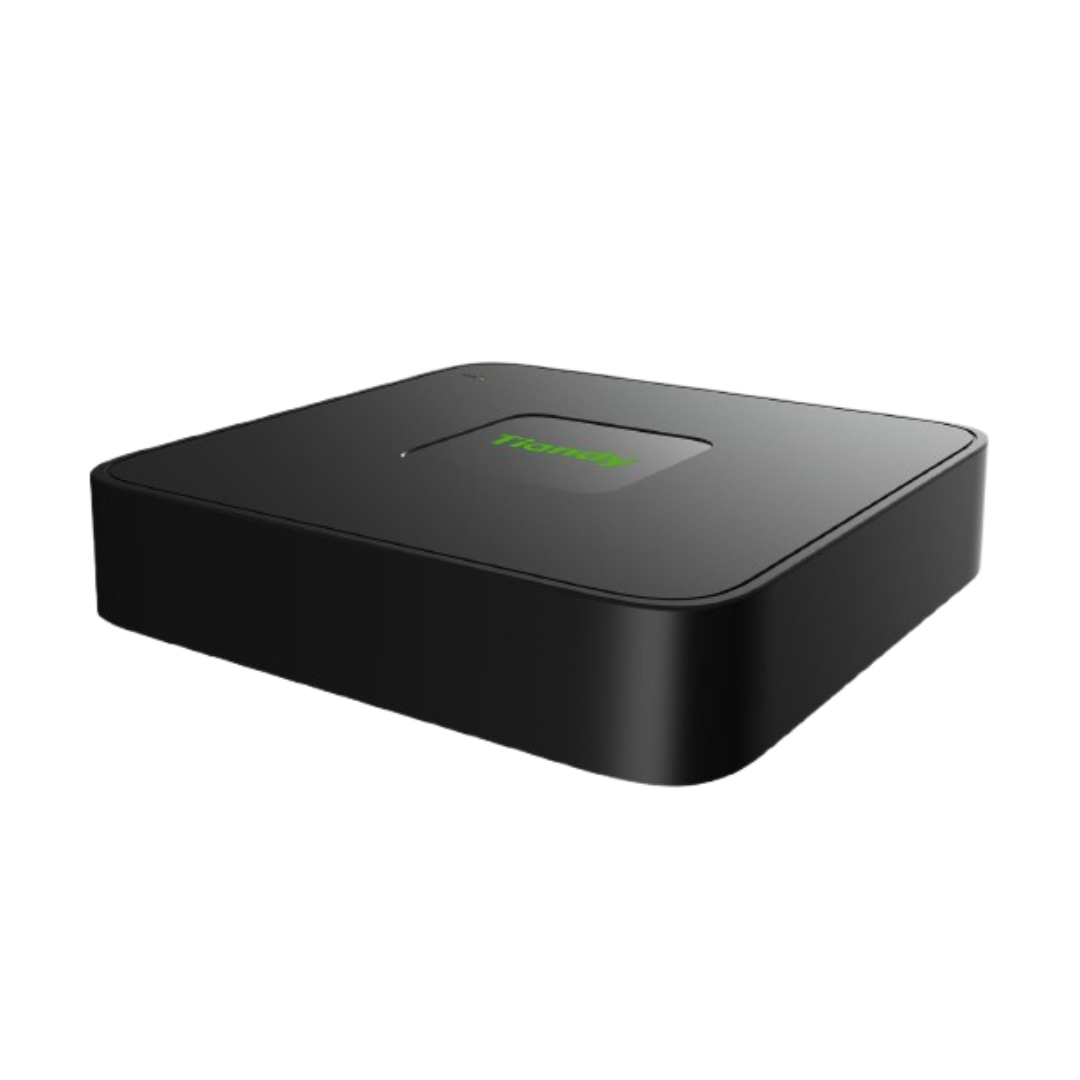

Be the first to review “TIANDT TC-R3104 Spec:I/B/P4/C/Eu/L/S/V2.0 1HDD 4ch PSE NVR”
