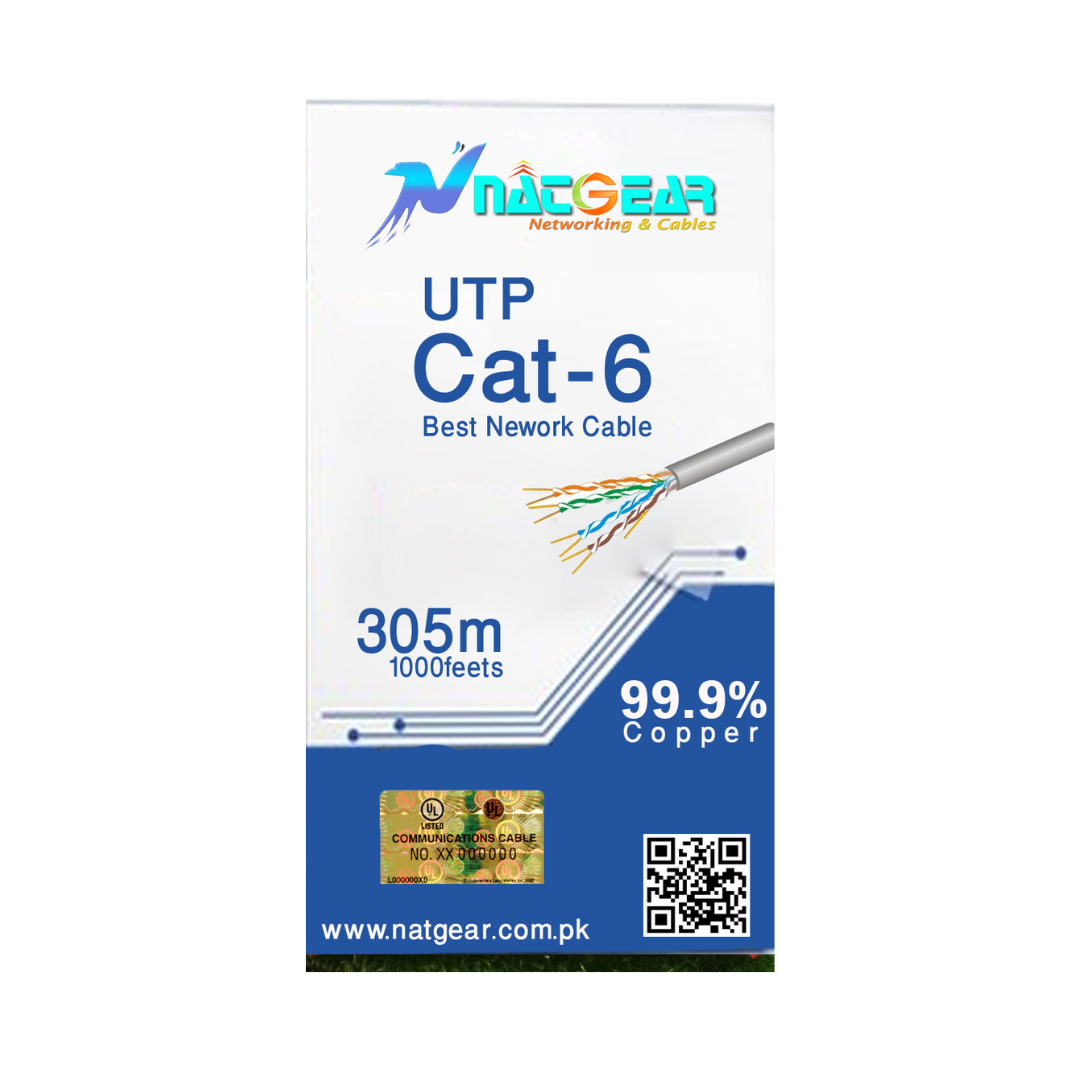

NATGEAR UTP CAT-6 23awg 4-Pair Bare Copper 99.9% 305M Network Cable

Specification

General

• Core Color:                   1 White- Blue /Blue 2 White-Orange /Orange 3 White-Green /Green 4 White- Brown /Brown
• Packing:                   Wooden Tray & Carton
• Carton Dimension:                   Per request
• Packing Length:                   305±1.5m
• Rip-Cord:                   Yes
• Drain Wire:                   No
• Sheath Physical Properties:                   Before Aging Tensile Strength (Mpa) ≥13.5 Elongation(%) ≥150 Aging Period (℃×hrs) 100℃×24h×10d After Aging Tensile Strength(Mpa) ≥12.5 Elongation(%) ≥125 Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks
• Electrical Characteristics (20℃):                   1.0-250.0MHz Impedance ((Ω) 100±15 1.0-250.0MHz Delay Skew (ns/100m) ≤45 DC Resistance (Ω/100m) max 9.38 DC Conductor Resistance Unbalance (%) max 5.0

Conductor

• Material:                   SOLID-Bare Copper Content 99.95%
• Nom.O.D.(Mm):                   0.530±0.005

Insulation

• Material:                   HDPE
• Diameter:                   0.95±0.05mm

Sheath

• Thickness:                   0.55±0.05 mm
• External O.D.:                   5.8±0.4mm
• Surface:                   Clean,Frap,Satiation
• Material:                   PVC(complies RoHS), CM
• Color:                   White RAL9003

Surface Printing

• Letter Height:                   3.0±0.3mm
• Color:                   Black
