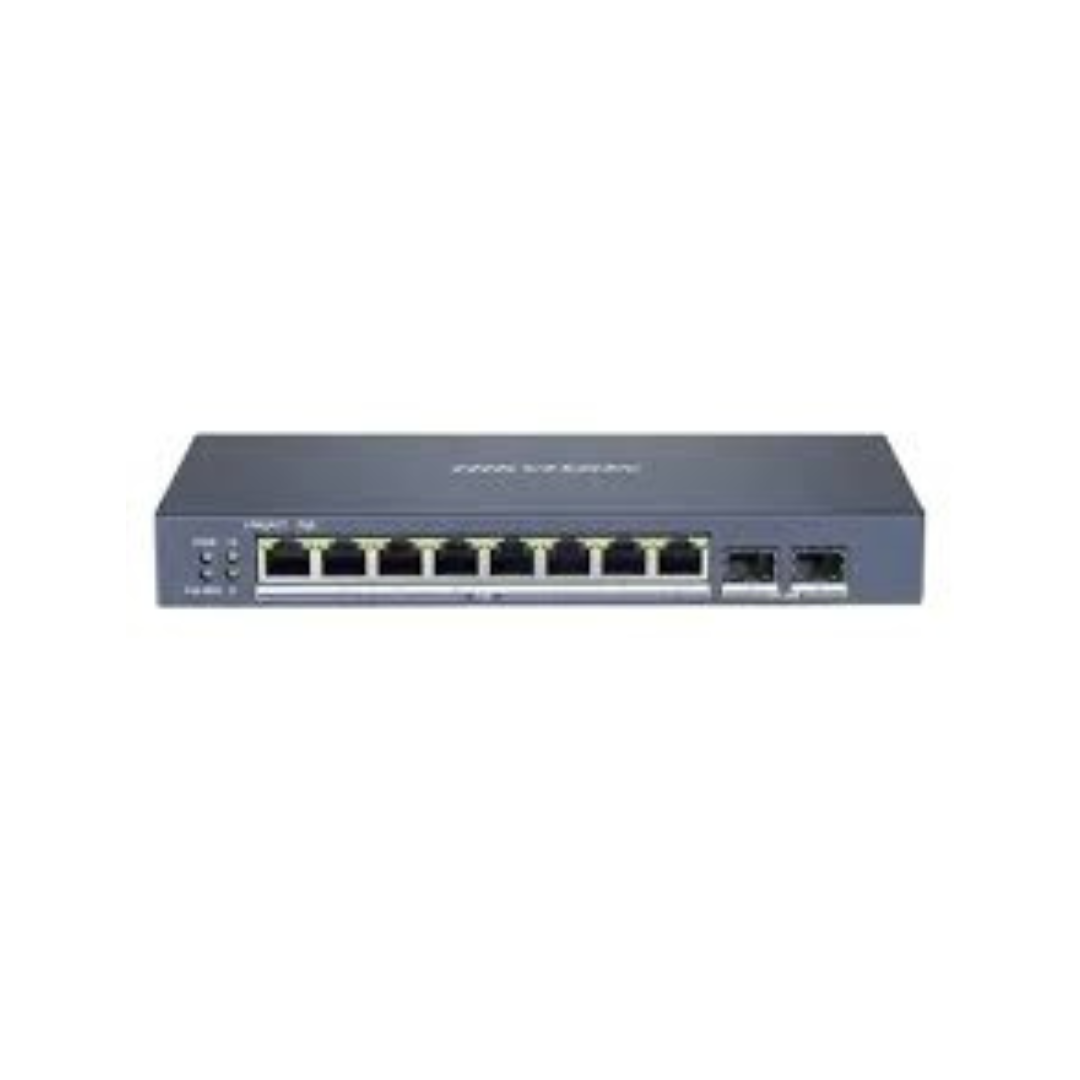

HIKVISION DS-3E1510P-SI 8 Port Gigabit Smart POE Switch
₨ 35,000
- 8 × gigabit PoE ports, and 2 × gigabit fiber optical ports.
- IEEE 802.3at/af standard for PoE ports.
- Network topology management, alarm push, network health monitor.
- 6 KV surge protection for PoE ports.
- AF/AT camera can reach up to 300 m in extend mode.
- PoE watchdog to auto detect and restart the cameras that do not respond.
- Various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on.
- General
- ShellMetal material
- Net Weight1.21 kg (2.67 lb)
- Gross Weight1.3 kg (2.87 lb)
- Dimensions (W × H × D)217.60 mm × 27.80 mm × 108.55 mm (8.57” × 1.09” × 4.27”)
- Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply48 VDC, 2.5 A
- Installation ModeDesk-Mounted,Wall-Mounted
- Max. Power Consumption120 W
- Power Consumption in Idle7 W
- Surge Protection6 KV
- Network Parameters
- Ports8 × Gigabit PoE port,2 × Gigabit fiber optical port
- MAC Address Table8 K
- Switching Capacity20 Gbps
- Packet Forwarding Rate14.88 Mpps
- Internal Cache4.1 Mbits
- PoE Power Supply
- PoE StandardIEEE 802.3af,IEEE 802.3at
- PoE Power PinEnd-span: 1/2(+), 3/6(-);
- PoE PortPoE: Ports 1 to 8
- Max. Port Power30 W
- PoE Power Budget110 W
- Software Function
- Long Range
Ports 1 to 8: up to 300 m.
Long range performance may vary depend on camera model or cable condition.
- Port Isolation
Ports 1 to 8: port isolation mode to improve network security.
Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
- PoE WatchdogPorts 1 to 8: auto detect and restart the cameras that do not respond.
- Link Aggregation
Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.
Support static link aggregation.
Support 8 aggregation groups.
- Loop Prevention
Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.
Support 802.1D STP.
- QoS
QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance.
Support port-based priority configuration.
Support SP, WRR priority schedule mode.
- VLAN
VLAN is used for network scale planning and network health improvement.
Support 802.1Q.
Configurable VLAN ID from 1-4094.
Support Trunk, Access port mode.
Support Max. 4094 VLAN.
- HPP
Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Display the port rate.
2. Display the port bandwidth utilization rate.
3. Display the PoE power usage.
4. Display topology information.
5. Display the alarm status.
6. Restart ports and devices.
7. Enable port long-rage mode.
8. Remotely upgrade the device.
- System MaintenanceRemote upgrade, default parameters recovery, logs viewing, basic network parameters configuration, import and export configuration, time sync
- Port Rate-LimitingPort rate-limiting is used for port bandwidth adjustment to prevent network congestion.
- Storm Control
Storm control is used to prevent switch ports from being blocked by broadcast or multicast storms in the LAN, which may affect network communication.
Support port rate limiting based on broadcast, multicast, and unknown unicast packets.
- Approval
- EMC
FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017);
IC (ICES-003: Issue 6);
RCM (ASNZS CISPR 32: 2015)
- Safety
UL (UL 60950-1);
CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition);
CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
- Chemistry
CE-RoHS (201165EU);
WEEE (201219EU);
Reach (Regulation (EC) No.19072006)
