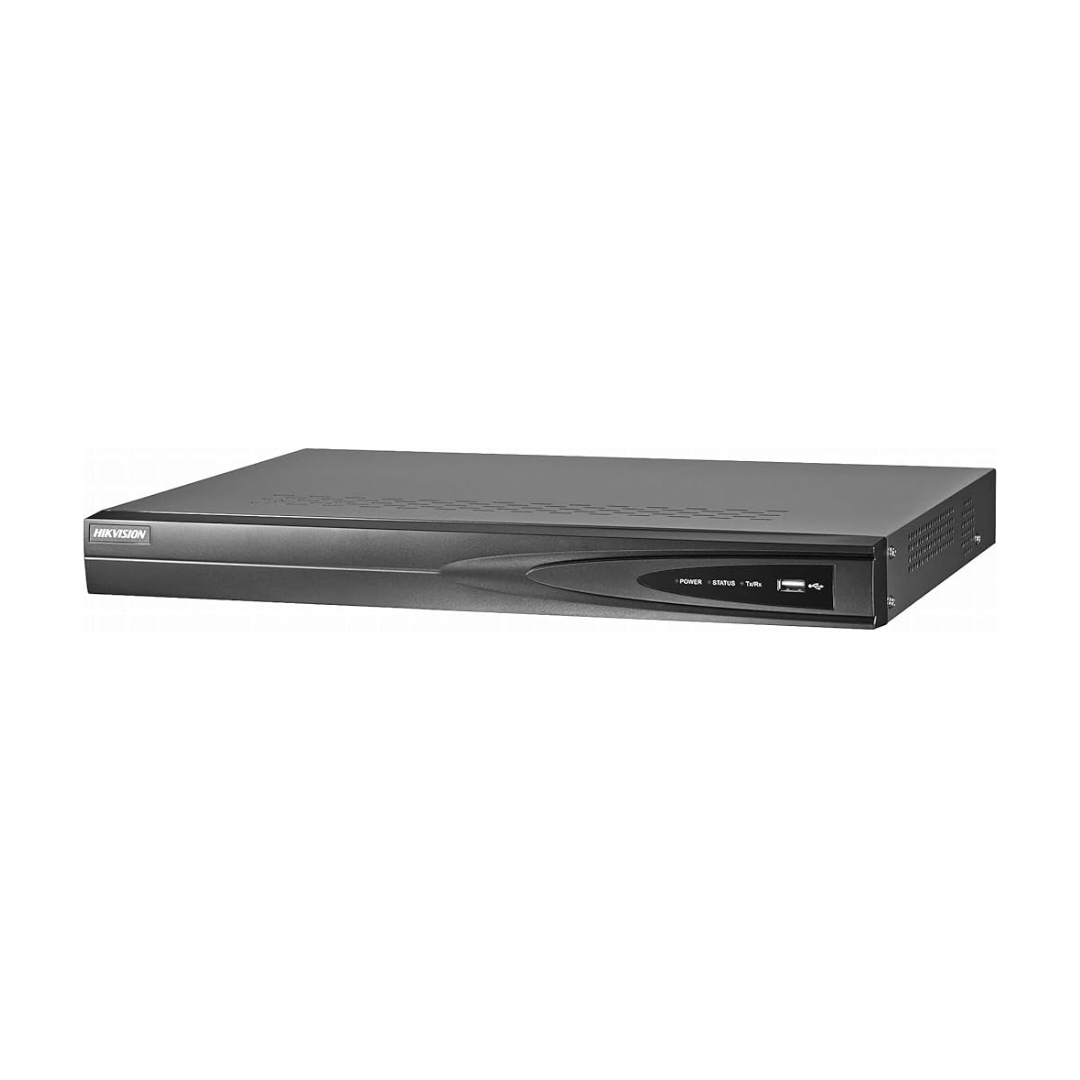

Hikvision DS-7616NI-Q1 16CH NVR 1HDD SUPPORT

Specification

• Video And Audio
• IP Video Input: 16-ch
• HDMI Output: 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
• VGA Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output Mode: HDMI/VGA simultaneous output
• Incoming Bandwidth: 160 Mbps
• Outgoing Bandwidth: 80 Mbps
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)

• Decoding
• Decoding Format: H.265+,H.265,H.264+,H.264
• Decoding Capability: 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
• Synchronous Playback: 16-ch
• Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

• Network
• Network Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

• PoE
• Interface: N/A

• RAID
• RAID Type: No

• Auxiliary Interface
• SATA: 1 SATA interface
• Capacity: Up to 8TB capacity for each disk
• USB Interface: 2 × USB 2.0

• General
• Power Supply: 12 VDC, 1.5 A
• Consumption: ≤ 10 W
• Working Temperature: -10 to +55º C (+14 to +131º F)
• Working Humidity: 10 to 90 %
• Chassis: 1U chassis
• Dimension (W × D × H): 320 × 240 × 48 mm (12.4″ × 9.4″ × 1.9″)
• ≤ 1 kg (2.2 l
