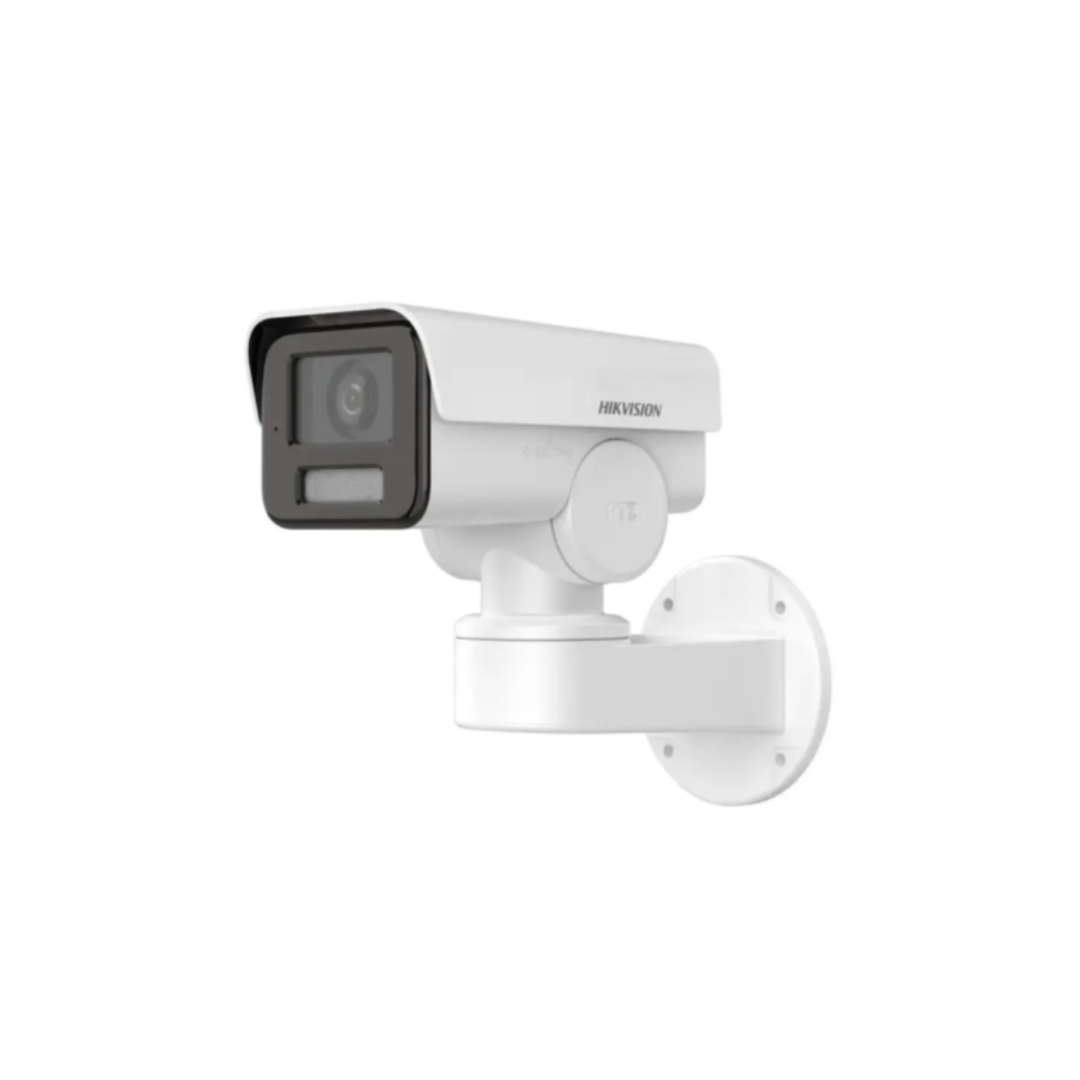

Name: Hikvision 2MP DS-2CD1P23G2-IUF Outdoor PT Camera with Audion(Mic)
SKU: 743
Price: 12500 PKR
Availability: InStock

Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 109°, vertical FOV 60°, diagonal FOV 129°

4 mm, horizontal FOV 86°, vertical FOV 47°, diagonal FOV 103°
Lens MountM12
Iris TypeFixed
ApertureMax. F2.0

DORI
DORI
2.8 mm: D: 40 m, O: 16 m, R: 8 m, I: 4 m

4 mm: D: 55 m, O: 21 m, R: 11 m, I: 5 m

Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR/VBR
Region Of Interest (ROI)1 fixed region for main stream

Audio
Audio Type-U: Mono sound
Environment Noise Filtering-U: Yes
Audio Sampling Rate-U: 8 kHz/16 kHz
Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate-U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network
SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile G (only -F model supports), Profile T), ISAPI, SDK
ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host
Up to 32 users

3 levels: Administrator, Operator and User
ClientiVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10, IE 11

Local service: Chrome 57.0+, Firefox 52.0+

Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Day/Night SwitchDay, Night, Auto, Schedule
Image EnhancementBLC, HLC, 3D DNR
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browse
Privacy Mask4 regions of privacy mask

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-In Microphone-U: Yes
Reset Key
-F: Yes

Event
Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
LinkageUpload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

General
Power
12 VDC ± 25%, 1.00 A, max. 12 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

PoE: 802.3af, Class 3, 36 V to 57 V, 0.34 A to 0.21 A, max. 12.5 W
MaterialFront cover: metal, body: plastic, bracket: plastic
Dimension197.1 mm × 105 mm × 225.4 mm (7.8″ × 4.1″ × 8.9″)
Package Dimension300 mm × 266 mm × 172 mm (11.8″ × 10.4″ × 6.8″)
WeightApprox. 900 g (2.0 lb.)
With Package WeightApprox. 1520 g (3.3 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
LanguageEnglish, Ukrainian
General FunctionAnti-banding, heartbeat, password protection, password reset via email

There are no reviews yet.

Hikvision 2MP DS-2CD1P23G2-IUF Outdoor PT Camera with Audion(Mic)

2 MP Fixed Bullet PT Network Camera
