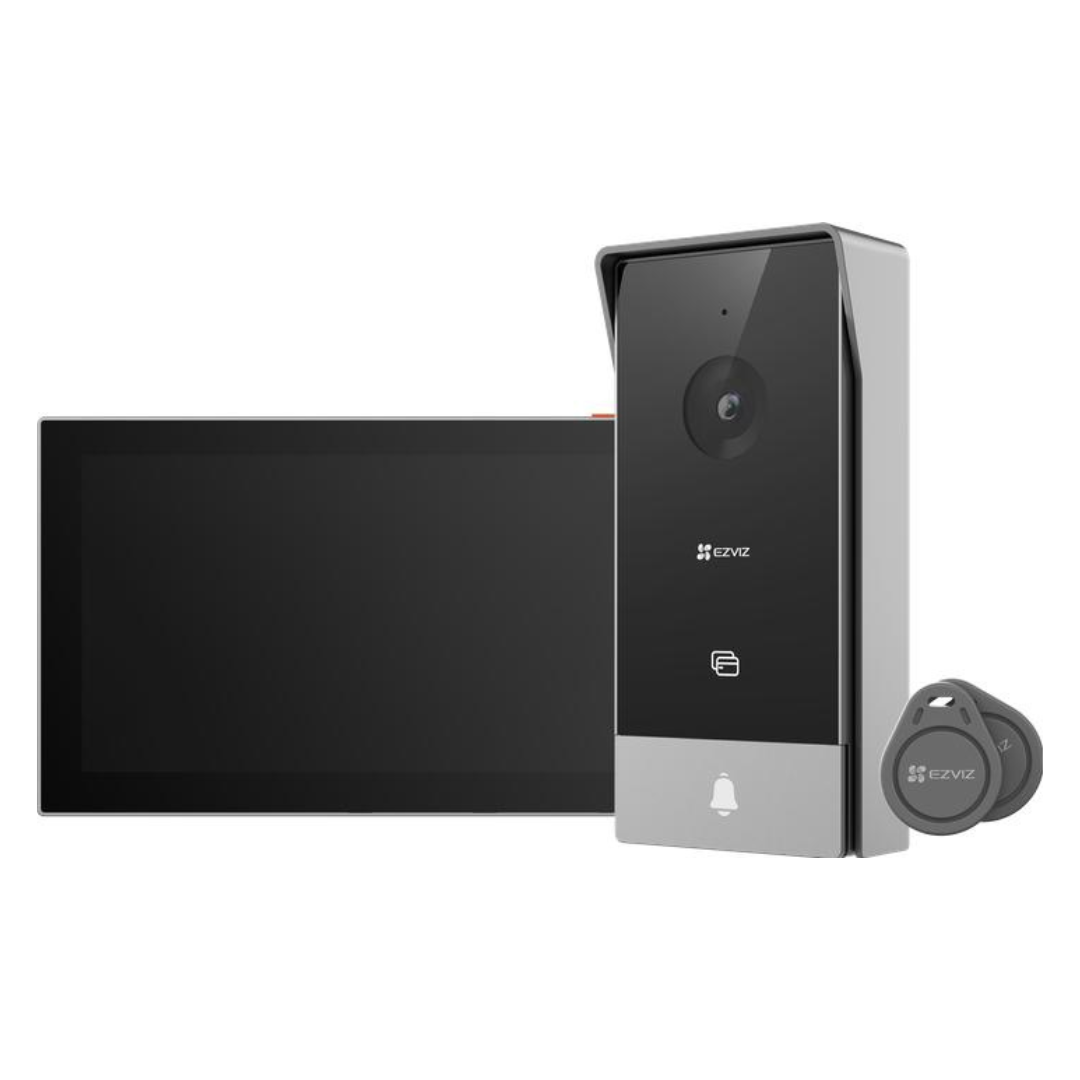

Name: Ezviz HP5 Smart Home Video Doorphone 1080p
SKU: 940
Price: 30500 PKR
Availability: InStock

Thank you, please leave that outside the door.

Hi, you have a delivery.

Video Storage Space

Required Bandwidth

To check the installation requirements and product compatibility, please refer to the User Manual for detailed information.
Users are able to customize the ringtone sent by the indoor display by touch controls or via the EZVIZ App. The outdoor doorbell only provides one default ringtone and cannot be customized.
The local storage card must be purchased separately. The cloud storage service is only available in certain markets. Please verify the availability before making a purchase.
Data from EZVIZ Lab‘s test results under standard conditions. Will vary with the frequency and complexity of the activity captured, and other environmental factors.
Users can draw in rectangles to customize up to 4 privacy zones.

ecifications
Model	CS-HP5-R100-1W2TFC
Outdoor Doorbell
Image Sensor	1/2.7″ Progressive Scan CMOS (Supports low light sensitivity)
Lens	2.0 mm @ F1.6,viewing angle: 134° (Diagonal)
Day & Night	IR-cut filter with auto-switching, 850 nm infrared light × 2 (max. 6m)
Max. Resolution	1920 × 1080 (1080p)
DNR	2D / 3D DNR
Video Compression	H.265 / H.264
Frame Rate	Max: 15fps; Self-Adaptive during network transmission
Connection and Function
Connection Method	Wired connection (2-Wired, capable with 4-Wired), digital signal transmission
Transmission Distance	Φ 2 x 0.75mm² , max. 50m Φ 2 x 1.5mm² , max. 100m Twisted pair, max. 120m
Open the door (Gate)	Support 2 wiring ports. 1-10m distance. The intercom panel provides a “dry”-contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V / 2A
Unlock (Electric strike plate)	Support 2 wiring ports. 1-10m distance. The electric strike plate or lock that you order must have a mechanical memory; the power supply to the electric strike plate or lock must not exceed 12V / 1.1A, otherwise should do as user manual.
Door Open Methods	1.RFID badge unlock (CPU card × 2 pcs) 2.App remote unlock 3.Indoor display unlock
Outdoor Doorbell Interface
Audio Input	Built-in high-sensitivity microphone
Audio Output	Built-in high-power speaker
Doorbell Button	1 doorbell button (Can be set to become illuminated or not).
Terminal	Two wiring ports to connect screen. Two wiring ports to connect gate. Two wiring ports to connect electric strike plate.
Functions
Tamper Alarm	Supports
Video Intercom	Long-distance video two-way talk
General
Operation Conditions	-30°C to 60°C , Humidity 95% or less (non-condensing)
IP Grade	Waterproof, with shield cover
Size	153 × 70.4 × 22.5 mm (7.02 × 2.77 × 0.89 inch)
Interior Display
Display size	7” touch screen
Resolution	1024 × 600
Interface
Audio Input	Built-in high-sensitivity microphone
Audio Output	Built-in high-power speaker
Button	Screen On / Off Button
Terminal	Two wiring ports to connect 1st outdoor doorbell.
Storage	Supports microSD card up to 512 GB Supports EZVIZ Cloud storage
Network Parameters
Interface Protocol	EZVIZ Cloud Proprietary Protocol
Protocol	EZVIZ Cloud Proprietary Protocol
Protocol	EZVIZ Connect Protocol
Wi-Fi Parameters
Wi-Fi Standard	IEEE802.11b, 802.11g, 802.11n, 802.11ac
Frequency Range	2.4G: 2.4 GHz ~ 2.4835 GHz 5G: 5.15 GHz ~ 5.25 GHz
Channel Bandwidth	Supports 20MHz
Security	64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate	11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps
Function
Multiple ringtones	Up to 20 ringtones
Functions	Live view, playback, two-way talk, video call
General
Operation Conditions	-10°C to 45°C, humidity 95% or less (non-condensing)
Size	180 × 111 × 15 mm (7.09 × 4.37 × 0.59 inch)
Power Supply	DC 24V 1.5A power supply, adaptor (100-240Vac)
Power Consumption	8W, Max. 24W
Products Weight (HP5)
Net Weight	639g (22.54oz)
With Package	1505g (53.09 oz)
In the box
In the box	– Monitor
	– Wall Bracket for Monitor
	– Power Adapter for Monitor
	– Intercom Panel
	– Drill Template for Monitor
	– Drill Template for Intercom Panel
	– Name Card (×2)
	– Screwdriver
	– Badges (×2)
	– Screw Kit (×2)
	– Wires and Wire Connectors
	– DC 24V Power Supply Jack Connector Cable
	– Regulatory Information (×2)
	– Quick Start Guide
Certifications
Certifications	CE / REACH / WEEE / RoHS
