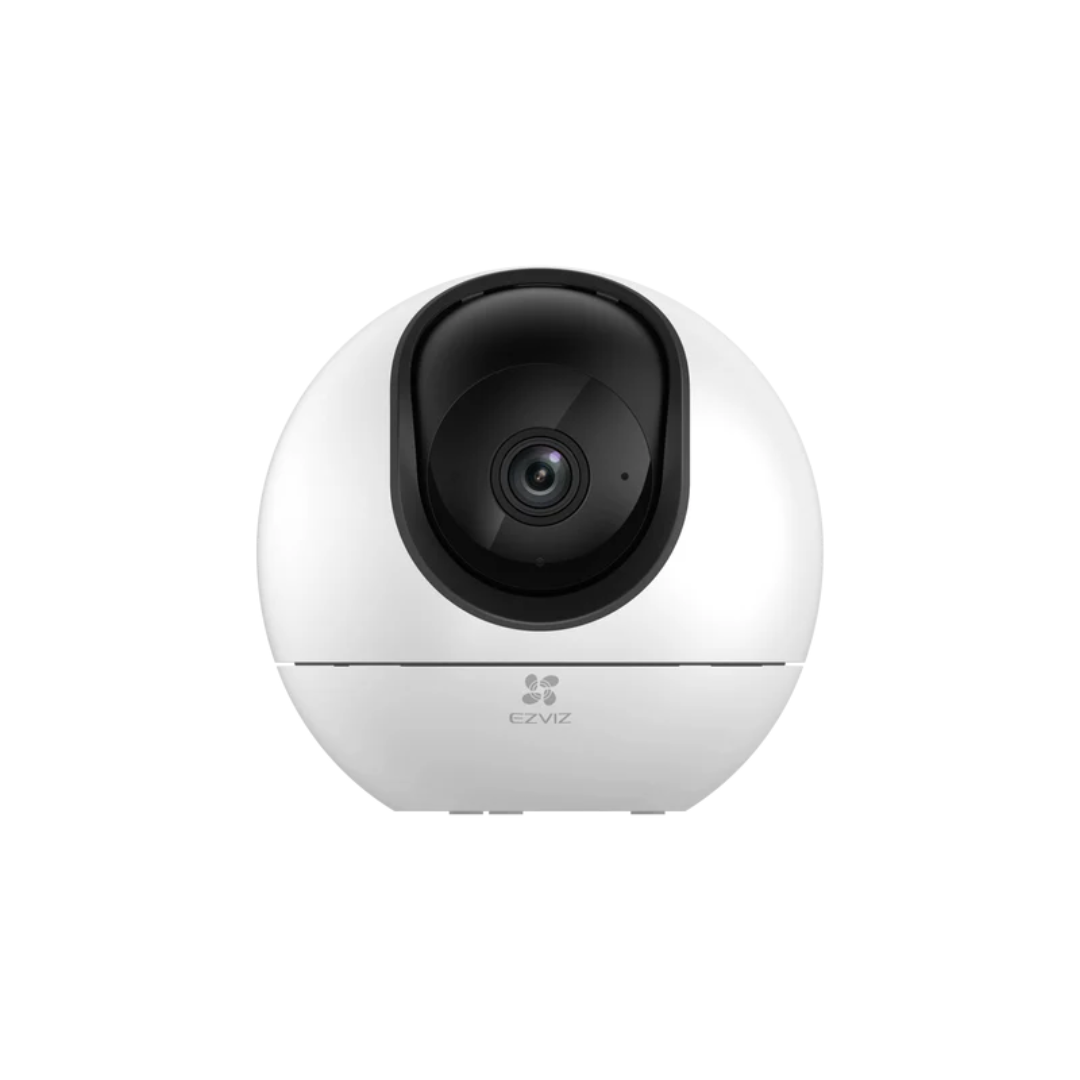

Model | CS-H6-V100-1J5WF | |
---|---|---|
Camera | ||
Image Sensor | 1/2.7″ Progressive Scan CMOS | |
Shutter Speed | Self-adaptive shutter | |
Lens | 4mm@ F1.6, view angle:87° (Horizontal), 53° (Vertical), 104°(Diagonal) | |
PT Angle | Pan: 353° , Tilt: 133° | |
Minimum Illumination | 0.51Lux @(F1.6, AGC ON), 0 Lux with IR | |
Lens Mount | M12 | |
Day & Night | IR-cut filter with auto-switching | |
DNR | 3D DNR | |
WDR | Digital WDR | |
BLC | Supports | |
Night Vision | 10 m | |
Video & Audio | ||
Max. Resolution | 2880 × 1620 | |
Frame Rate | Max:25fps; Self-Adaptive during network transmission | |
Video Compression | H.265 / H.264 | |
Video Bit Rate | Ultra-HD; HD; Standard. Adaptive bit rate. | |
Audio Bit Rate | Self-Adaptive | |
Max. Bitrate | 4 Mbps | |
Network | ||
Wi-Fi Standard | IEEE802.11a, 802.11b, 802.11g, 802.11n, 802.11ac | |
Frequency Range | 2.4G: 2400~2483.5 MHz 5G: 5170~5250 MHz,5735~5835 MHz | |
Channel Bandwidth | Supports 40 MHz | |
Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK | |
Transmission Rate | 11b 11Mbps, 11g 54Mbps, 11nHT20 MCS7, 11nHT40 MCS7; 11a 54Mbps, 11nHT20 MCS7, 11nHT40 MCS7 | |
Wi-Fi Pairing | AP pairing | |
Protocol | EZVIZ Cloud Proprietary Protocol | |
Interface Protocol | EZVIZ Cloud Proprietary Protocol | |
Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) | |
Storage | ||
Local Storage | Micro SD card slot (Max. 512G) | |
Cloud Storage | EZVIZ Cloud Storage | |
Function | ||
Smart Alarm | AI-Powered Human Shape Detection / Pet Detection / Waving-Hand Detection / Voice Activity Detection | |
Customized Alert Area | Supports | |
Two-Way Talk | Supports ( Double Mic ) | |
General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark | |
General | ||
Operating Conditions | -10°C to 45°C ( 14°F to 113 °F ), humidity 95% or less (non-condensing) | |
Power Supply | DC 5V/2A(Type-C) | |
Power Consumption | Max. 8W | |
Product Dimensions | 115.5 × 116 × 160 mm (4.55 × 4.57 × 6.30 inch) | |
Packaging Dimensions | 116 × 116 × 164 mm (4.57 × 4.57 × 6.46 inch) | |
Weight (With Package) | 487 g (17.18 oz) | |
Net Weight | 255 g (8.99 oz) |
