Sale!

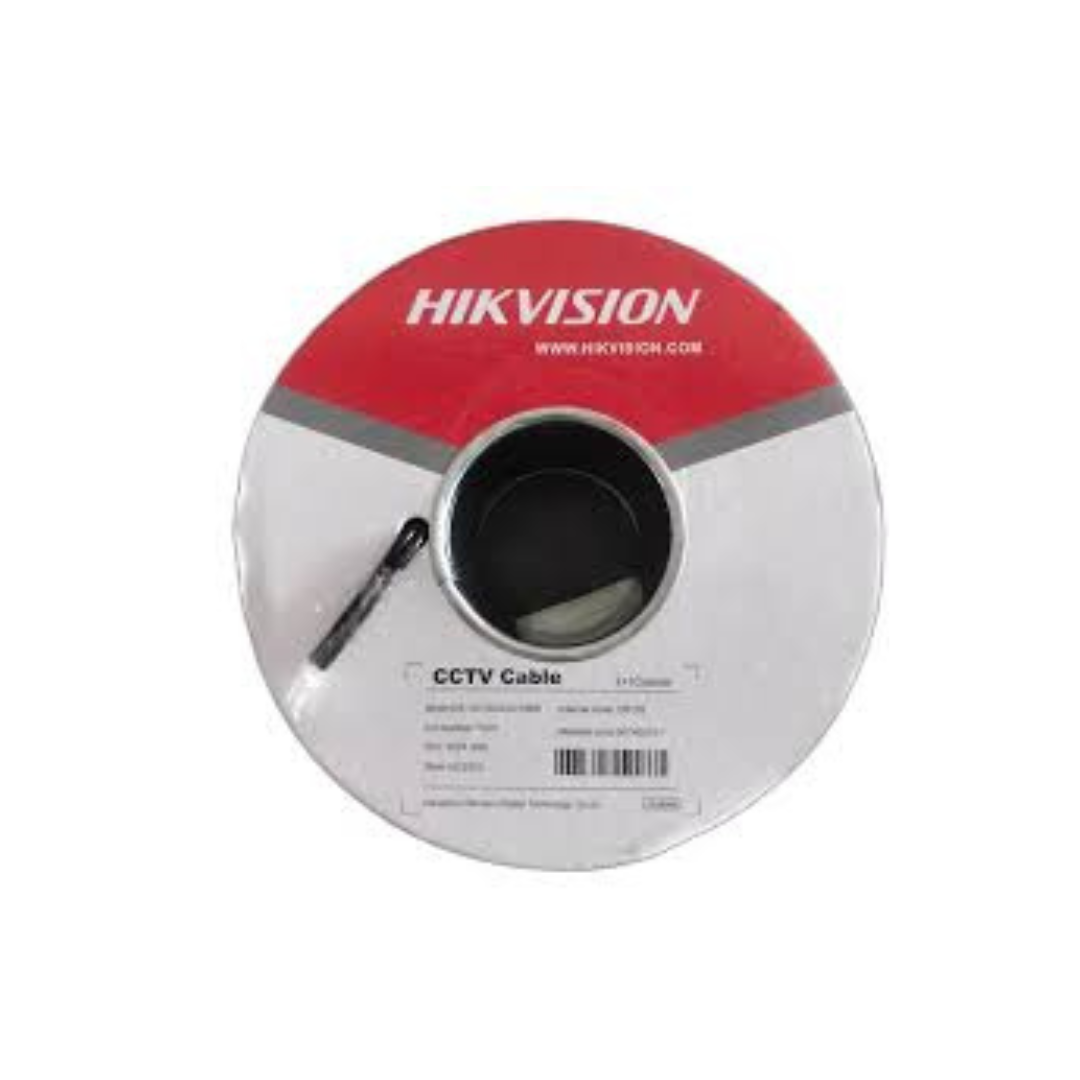

Hikvision DS-1LH1SCA3C-090B RG-59 Coaxial Cable pure Copper
₨ 8,000
Hikvision
90 m Mini RG59 Coaxial Cable with Power Cable
DS-1LH1SCA3C-090B
90 m reliable coaxial cable with power cables Excellent transmission performance using solid copper Full diameter and full length High shielding performance via high braiding density Great flame resistance.Please Feel Free to Contact
- Coaxial Cable
- Conductor MaterialBare Copper
- Conductor Wire Gauge26AWG
- Conductor Diameter0.41 ± 0.01mm
- Insulation MaterialFoam PE
- Insulation Diameter2.0 ± 0.1mm
- Tape MaterialAluminum foil
- Tape Lappingbonded
- Braid MateriaCopper Clad Aluminum Magnesium
- Braiding Standard5*16*0.12±0.008mm
- Braiding Density80%
- Impedance75 ohms
- Jacket MaterialPVC
- Jacket Average Thickness≥0.45mm
- Power Cable
- Conductor MaterialBare Copper
- Conductor Diameter0.41 ± 0.01mm;11*(0.16 ±0.01)mm
- Insulation MaterialPVC(Red, Black,Yellow);Foam PE; PVC(Red, Black)
- Insulation Diameter1.2 ± 0.1mm;2.0 ± 0.1mm
- Jacket MaterialPVC
- Jacket Average Thickness≥0.45mm
- Siamese Cable General
- Length90m;180m
- Diameter3.5×7.0±0.3mm;3.5×7.2±0.3mm
- ColorBlack
- Operating Temperature-15~70ºC
- Storage Temperature-15~70ºC
- Dimensions ( L X W X H )210mm * 210mm * 103mm;260mm * 260mm * 120mm
